VAMPIRE	eBACS: ECRYPT Benchmarking of Cryptographic Systems	ECRYPT II

Measurements of CAESAR candidates on one machine: amd64; Bobcat (500f20); 2011 AMD E-450; 2 x 1650MHz; h4e450, supercop-20250922

[Page version: 20251103 11:56:53]

eBAEAD (ECRYPT Benchmarking of Authenticated Ciphers) is a project to measure the performance of authenticated ciphers. This page presents an excerpt of the full eBAEAD benchmark results. The excerpt contains AES-GCM and the third-round CAESAR candidates (plus older versions of the same ciphers for comparison).

Each table row lists the first quartile of many speed measurements, the median of many speed measurements, the third quartile of many speed measurements, and the name of the primitive. Measurements with large variance are indicated in red with question marks. The symbol T: (starting with supercop-20200816) means that the SUPERCOP database at the time of benchmarking did not list constant time as a goal for this implementation. The symbol T!!! means that constant time was listed as a goal for this implementation, but that the implementation failed TIMECOP. (TIMECOP failures are not necessarily security issues; they can sometimes be resolved by, e.g., declaring that a rejection-sampling condition is safe to declassify.)

There is a separate page with more information about each cipher and each implementation.

Test results

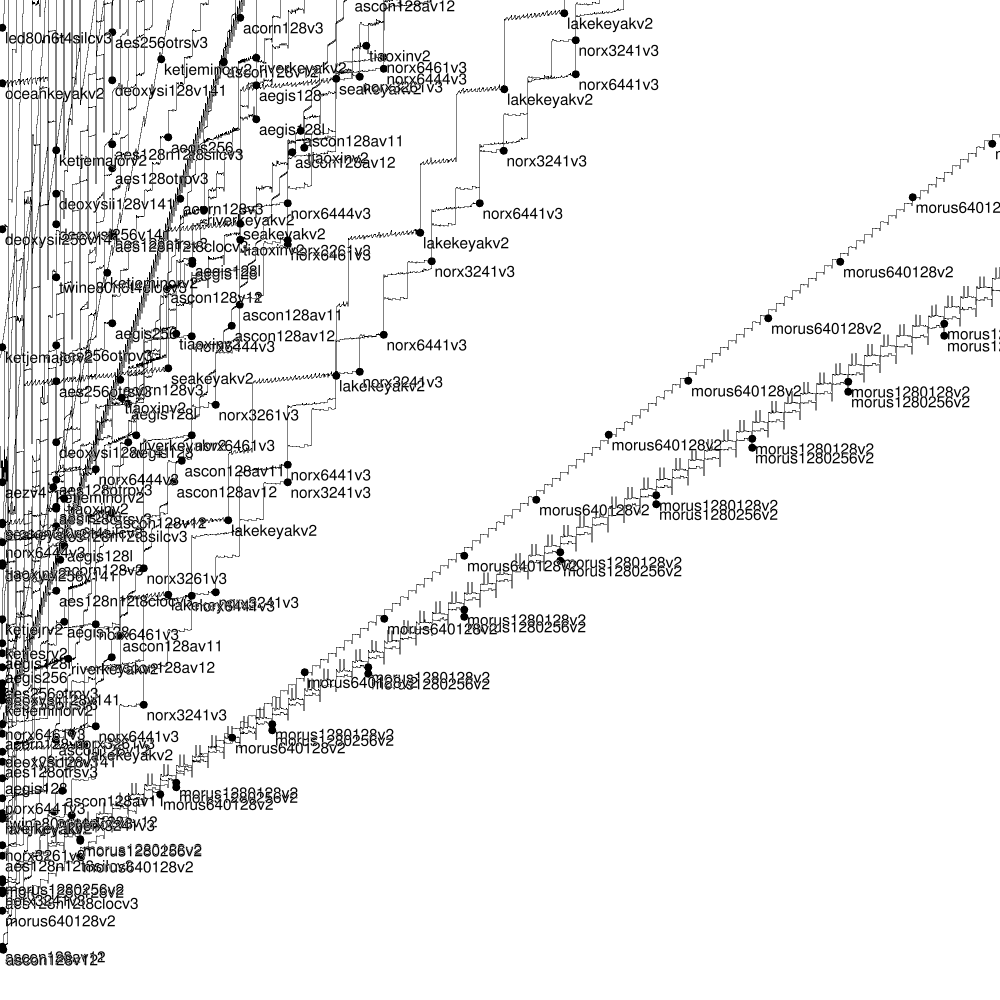

Graphs: old (bytes,cycles)

Cycles/byte for long+0 encrypt 25% 50% 75% aead 3.06 3.08 3.10 T:morus1280256v1 3.05 3.08 3.15 T:morus1280256v2 3.06 3.09 3.18 T:morus1280128v2 3.08 3.10 3.10 T:morus1280128v1 4.17 4.18 4.20 T:morus640128v1 4.18 4.19 4.20 T:morus640128v2 6.60 6.64 6.71 T:norx6444v3 6.91 6.95 6.97 T:norx6444v2 6.98 7.11 7.20 T:norx6441v2 7.24 7.24 7.26 T:norx6441v3 6.90 7.50 7.60 T:lunarkeyakv2 7.81 7.84 7.86 T:norx6441v1 7.90 7.91 7.99 T:norx6444v1 8.09 8.11 8.12 T:norx3241v3 8.09 8.11 8.12 T:norx3241v2 8.32 8.36 8.39 T:tiaoxinv1 8.37 8.42 8.45 T:tiaoxinv2 9.68 9.73 9.75 T:norx3241v1 9.79 9.82 9.89 T:lakekeyakv1 9.78 9.95 10.05 T:seakeyakv2 9.88 9.96 10.18 T:lakekeyakv2 10.03 10.04 10.06 T:norx6461v2 10.03 10.05 10.07 T:norx6461v3 9.92 10.27 10.43 T:oceankeyakv2 10.42 10.42 10.44 T:aegis128l 11.21 11.25 11.27 T:norx6461v1 11.99 12.00 12.02 T:norx3261v3 11.99 12.01 12.02 T:norx3261v2 13.12 13.13 13.15 T:ascon96v1 13.24 13.25 13.27 T:ascon128av11 13.30 13.31 13.32 ascon128av12 14.25 14.25 14.26 T:acorn128v3 14.33 14.37 14.42 T:norx3261v1 14.99 15.01 15.01 T:acorn128v2 14.98 15.02 15.05 T:aegis128 15.46 15.48 15.49 T:aegis256 19.86 19.87 19.88 ascon128v12 20.24 20.25 20.25 T:ascon128v11 20.24 20.25 20.26 T:ascon128v1 21.37 21.50 21.59 T:riverkeyakv2 23.16 23.17 23.51 T:ketjemajorv2 23.89 23.95 23.96 T:ketjeminorv2 25.02 25.10 25.21 T:aes128otrcv3 28.08 28.11 28.58 T:aes128otrsv1 28.04 28.13 28.17 T:aes128otrsv2 30.44 30.45 30.45 T:aes128otrpv1 30.44 30.47 30.49 T:aes128otrpv2 31.97 32.06 32.99 T:aes128otrsv3 32.81 32.91 32.93 T:aes256otrcv3 33.27 33.59 34.00 T:seakeyakv1 33.02 33.75 34.16 T:aes128otrpv3 34.27 34.35 34.38 T:deoxysi128v141 34.42 34.51 35.61 T:oceankeyakv1 35.81 35.85 35.91 T:aes256otrsv2 35.83 35.91 35.95 T:aes256otrsv1 37.26 37.32 37.37 T:deoxysi256v141 39.15 39.18 39.65 aegis128l 39.27 39.27 39.31 T:aes256otrpv1 39.28 39.70 39.84 T:aes256otrpv2 39.71 39.78 39.80 T:aes256otrsv3 39.89 40.01 40.02 T:aesjambuv1 40.91 40.92 40.94 T:aes256otrpv3 42.85 42.93 42.96 T:aes128n8t8clocv2 42.89 42.94 43.02 T:aes128n12clocv1 42.93 42.94 42.97 T:aes128n12t8clocv2 42.91 42.96 43.08 T:aes128n12t8clocv3 43.51 43.53 43.57 T:proest256otrv1 43.90 43.96 43.99 T:aes128n8clocv1 47.25 47.25 47.25 T:aes128n12t8silcv3 47.35 47.59 48.12 T:aes128n12silcv1 48.96 49.04 49.57 T:aes128n12t8silcv2 49.00 49.04 49.09 T:aes128n8t8silcv2 49.55 49.57 49.61 T:aes128n8silcv1 50.39 50.39 50.40 T:twine80n6t4clocv3 53.87 53.88 53.90 T:twine80n6t4clocv2 58.12 58.72 59.28 T:aes256gcmv1 76.64 76.66 76.67 T:deoxysii128v141 80.42 80.49 81.48 T:riverkeyakv1 88.21 88.31 88.44 T:deoxysii256v141 92.75 92.77 93.09 T:ketjesrv1 111.22 111.28 111.44 T:ketjesrv2 112.19 112.24 112.30 T:proest128otrv1 128.35 128.53 128.81 T:aezv4 138.00 138.01 138.95 T:ketjejrv1 149.00 150.38 150.65 T:aezv5 191.09 191.26 193.42 T:present80n6t4silcv3 191.92 192.98 193.48 T:deoxysneq128128v1 193.95 194.06 194.47 T:deoxysneq128128v13 252.62 252.97 253.65 T:ketjejrv2 275.21 277.64 277.69 T:twine80n6clocv1 305.69 305.76 306.60 T:deoxysneq256128v1 307.34 308.15 309.73 T:deoxysneq256128v13 355.50 356.26 357.21 T:aezv3 381.23 383.04 384.87 T:aezv1 385.89 386.73 386.96 T:deoxyseq128128v13 391.73 391.86 392.24 T:deoxyseq128128v1 442.86 442.95 443.47 T:led80n6t4silcv3 612.59 613.74 620.53 T:deoxyseq256128v13 610.68 617.72 622.81 T:deoxyseq256128v1 779.19 779.77 780.10 T:aes128gcmv1 3142.53 3179.69 3180.94 T:acorn128 10122.90 10123.46 10124.21 T:present80n6t4silcv2 10124.84 10125.22 10125.84 T:present80n6silcv1 11631.68 11661.89 11673.62 T:led80n6silcv1 11807.70 11837.87 11848.64 T:led80n6t4silcv2 37922.03 37925.78 37931.53 aes256gcmv1

Cycles/byte for long+0 decrypt 25% 50% 75% aead 3.12 3.12 3.12 T:morus1280128v2 3.11 3.12 3.15 T:morus1280256v2 3.10 3.13 3.15 T:morus1280256v1 3.12 3.13 3.15 T:morus1280128v1 4.18 4.20 4.20 T:morus640128v2 4.23 4.24 4.26 T:morus640128v1 6.52 6.65 6.79 T:lunarkeyakv2 6.65 6.68 6.68 T:norx6444v2 6.89 6.90 7.03 T:norx6441v2 6.87 6.92 6.94 T:norx6444v3 7.14 7.15 7.17 T:norx6441v3 7.83 7.87 7.92 T:norx6441v1 7.86 7.92 7.99 T:norx6444v1 8.09 8.11 8.12 T:norx3241v2 8.10 8.11 8.12 T:norx3241v3 9.30 9.36 9.43 T:lakekeyakv1 9.04 9.37 9.39 T:tiaoxinv1 9.29 9.40 9.46 T:lakekeyakv2 9.38 9.41 9.43 T:tiaoxinv2 9.43 9.52 9.59 T:oceankeyakv2 9.41 9.57 9.69 T:seakeyakv2 9.78 9.85 9.88 T:norx3241v1 10.06 10.06 10.09 T:norx6461v3 10.06 10.08 10.10 T:norx6461v2 10.54 10.57 10.57 T:aegis128l 11.22 11.28 11.32 T:norx6461v1 12.00 12.00 12.02 T:norx3261v2 12.00 12.01 12.02 T:norx3261v3 13.05 13.06 13.07 T:ascon96v1 13.16 13.18 13.19 T:ascon128av11 13.27 13.27 13.29 ascon128av12 13.50 13.50 13.54 T:acorn128v3 14.45 14.50 14.50 T:norx3261v1 14.51 14.51 14.51 T:acorn128v2 15.08 15.11 15.47 T:aegis128 15.64 15.65 15.66 T:aegis256 19.86 19.88 19.98 ascon128v12 19.98 20.00 20.20 T:ascon128v11 19.98 20.00 20.08 T:ascon128v1 21.77 21.87 21.95 T:riverkeyakv2 24.78 24.91 25.04 T:ketjemajorv2 24.88 24.93 25.27 T:ketjeminorv2 24.90 25.03 25.08 T:aes128otrcv3 28.27? 28.29? 33.98? T:aes128otrsv1 28.58 28.60 28.62 T:aes128otrsv2 30.80 30.82 30.84 T:aes128otrpv1 31.03 31.05 31.09 T:aes128otrpv2 32.59 32.74 32.79 T:aes256otrcv3 33.18 33.43 33.86 T:seakeyakv1 33.50 33.53 34.50 T:aes128otrsv3 34.12 34.25 35.25 T:aes128otrpv3 34.28 34.34 34.48 T:oceankeyakv1 36.27 36.33 36.39 T:aes256otrsv2 36.31 36.37 37.01 T:aes256otrsv1 38.91 38.94 39.41 aegis128l 38.99 39.04 39.07 T:deoxysi128v141 39.76 39.87 40.19 T:aes256otrpv1 39.94 40.08 40.52 T:aes256otrpv2 40.29 40.37 40.39 T:aesjambuv1 41.21 41.28 41.30 T:aes256otrsv3 42.11 42.15 42.17 T:aes256otrpv3 42.43 42.49 42.63 T:deoxysi256v141 43.15 43.21 43.24 T:proest256otrv1 45.13 45.24 45.27 T:aes128n8t8clocv2 45.23 45.26 45.28 T:aes128n12t8clocv2 45.72 45.75 45.79 T:aes128n12t8clocv3 45.99 46.04 46.12 T:aes128n12clocv1 46.19 46.24 46.35 T:aes128n8clocv1 47.37 47.38 47.40 T:aes128n12t8silcv3 47.45 47.47 47.64 T:aes128n12silcv1 49.29 49.37 49.45 T:aes128n8t8silcv2 49.30 49.40 49.44 T:aes128n12t8silcv2 49.49 49.53 49.74 T:aes128n8silcv1 50.88 50.90 50.91 T:twine80n6t4clocv3 54.73 54.75 54.93 T:twine80n6t4clocv2 58.04 59.06 59.96 T:aes256gcmv1 76.41 76.48 76.50 T:deoxysii128v141 80.08 80.15 81.18 T:riverkeyakv1 88.03 88.26 88.36 T:deoxysii256v141 94.76 94.78 94.80 T:ketjesrv1 100.28 100.32 100.38 T:ketjesrv2 112.28 112.31 112.32 T:proest128otrv1 128.40 128.79 129.82 T:aezv4 140.99 141.01 141.02 T:ketjejrv1 148.95 150.30 150.38 T:aezv5 192.48 192.68 194.66 T:present80n6t4silcv3 223.33 223.60 224.21 T:ketjejrv2 249.55 250.45 250.61 T:deoxysneq128128v1 251.57 251.69 252.59 T:deoxysneq128128v13 271.96 272.26 272.78 T:twine80n6clocv1 355.29 356.12 356.83 T:aezv3 381.21 383.11 384.12 T:aezv1 386.80 386.97 387.62 T:deoxyseq128128v13 388.02 388.15 389.21 T:deoxysneq256128v1 389.44 391.75 394.75 T:deoxysneq256128v13 442.25 442.30 442.81 T:led80n6t4silcv3 501.37 502.00 502.40 T:deoxyseq128128v1 612.61 613.82 620.10 T:deoxyseq256128v13 779.71 780.25 780.38 T:aes128gcmv1 781.32 782.25 788.80 T:deoxyseq256128v1 3096.28 3128.98 3130.13 T:acorn128 10123.81 10124.59 10125.56 T:present80n6t4silcv2 10125.09 10125.75 10126.98 T:present80n6silcv1 11663.85 11667.43 11673.20 T:led80n6silcv1 11764.19 11770.78 11809.13 T:led80n6t4silcv2 37921.93 37923.31 37929.44 aes256gcmv1

Cycles/byte for long+0 forgery 25% 50% 75% aead 3.13 3.13 3.13 T:morus1280128v2 3.10 3.15 3.16 T:morus1280256v1 3.13 3.15 3.17 T:morus1280256v2 3.16 3.16 3.16 T:morus1280128v1 4.19 4.20 4.20 T:morus640128v2 4.25 4.26 4.26 T:morus640128v1 6.88 6.88 6.91 T:norx6444v2 6.81 6.94 7.10 T:lunarkeyakv2 7.10 7.13 7.26 T:norx6441v2 7.10 7.14 7.17 T:norx6444v3 7.36 7.37 7.38 T:norx6441v3 8.07 8.09 8.13 T:norx6441v1 8.10 8.11 8.13 T:norx3241v3 8.09 8.12 8.14 T:norx3241v2 8.14 8.16 8.18 T:norx6444v1 9.38 9.41 9.43 T:tiaoxinv1 9.39 9.41 9.43 T:tiaoxinv2 9.40 9.48 9.49 T:lakekeyakv1 9.41 9.58 9.76 T:lakekeyakv2 9.54 9.72 9.80 T:oceankeyakv2 9.68 9.83 9.94 T:seakeyakv2 9.84 9.87 9.88 T:norx3241v1 10.27 10.29 10.30 T:norx6461v3 10.29 10.30 10.31 T:norx6461v2 10.76 10.79 10.81 T:aegis128l 11.46 11.50 11.54 T:norx6461v1 12.00 12.01 12.02 T:norx3261v2 12.01 12.01 12.01 T:norx3261v3 13.05 13.06 13.07 T:ascon96v1 13.18 13.19 13.20 T:ascon128av11 13.27 13.29 13.31 ascon128av12 13.40 13.50 13.50 T:acorn128v3 14.50 14.51 14.51 T:acorn128v2 14.49 14.53 14.53 T:norx3261v1 15.09 15.12 15.14 T:aegis128 15.84 15.86 15.88 T:aegis256 19.88 19.89 19.90 ascon128v12 20.00 20.00 20.01 T:ascon128v11 20.00 20.01 20.09 T:ascon128v1 21.93 22.03 22.25 T:riverkeyakv2 24.89 24.92 24.96 T:aes128otrcv3 24.97 25.11 25.15 T:ketjemajorv2 25.09 25.16 25.49 T:ketjeminorv2 28.49? 28.77? 34.20? T:aes128otrsv1 28.75 28.81 28.84 T:aes128otrsv2 31.01 31.02 31.03 T:aes128otrpv1 31.23 31.25 31.26 T:aes128otrpv2 32.59 32.68 32.88 T:aes256otrcv3 33.34 33.59 34.06 T:seakeyakv1 33.71 33.89 34.68 T:aes128otrsv3 34.33 34.47 35.55 T:aes128otrpv3 34.46 34.59 34.64 T:oceankeyakv1 36.52 36.56 36.60 T:aes256otrsv1 36.48 36.58 36.83 T:aes256otrsv2 39.13 39.17 39.64 aegis128l 39.20 39.26 39.28 T:deoxysi128v141 40.00 40.03 40.39 T:aes256otrpv1 40.14 40.29 40.33 T:aes256otrpv2 40.38 40.39 40.41 T:aesjambuv1 41.46 41.48 41.51 T:aes256otrsv3 42.29 42.36 42.40 T:aes256otrpv3 42.65 42.70 42.85 T:deoxysi256v141 43.15 43.16 43.21 T:proest256otrv1 45.13 45.25 45.49 T:aes128n8t8clocv2 45.24 45.26 45.28 T:aes128n12t8clocv2 45.72 45.80 45.83 T:aes128n12t8clocv3 46.00 46.06 46.14 T:aes128n12clocv1 46.18 46.31 47.31 T:aes128n8clocv1 47.37 47.39 47.40 T:aes128n12t8silcv3 47.45 47.66 47.71 T:aes128n12silcv1 49.29 49.32 49.37 T:aes128n12t8silcv2 49.30 49.34 49.40 T:aes128n8t8silcv2 49.49 49.55 49.62 T:aes128n8silcv1 50.88 50.90 50.91 T:twine80n6t4clocv3 54.76 54.77 54.78 T:twine80n6t4clocv2 57.33 58.95 60.36 T:aes256gcmv1 76.64 76.72 76.75 T:deoxysii128v141 80.28 80.38 81.37 T:riverkeyakv1 88.34 88.43 88.59 T:deoxysii256v141 94.98 95.00 95.01 T:ketjesrv1 100.43 100.56 100.73 T:ketjesrv2 112.29 112.30 112.39 T:proest128otrv1 128.04 128.42 129.60 T:aezv4 141.21 141.36 141.98 T:ketjejrv1 148.65 149.11 149.96 T:aezv5 192.47 192.67 194.66 T:present80n6t4silcv3 223.49 223.82 224.45 T:ketjejrv2 249.60 250.35 250.62 T:deoxysneq128128v1 251.78 251.92 252.57 T:deoxysneq128128v13 272.24 272.27 272.80 T:twine80n6clocv1 354.96 355.73 357.49 T:aezv3 381.27 382.51 385.14 T:aezv1 387.00 387.20 388.05 T:deoxyseq128128v13 388.04 388.17 389.15 T:deoxysneq256128v1 389.62 391.99 394.97 T:deoxysneq256128v13 442.21 442.32 442.89 T:led80n6t4silcv3 501.40 501.98 502.48 T:deoxyseq128128v1 612.82 614.11 620.33 T:deoxyseq256128v13 745.82 746.15 746.59 T:aes128gcmv1 745.79 746.76 755.68 aes256gcmv1 781.31 782.49 788.83 T:deoxyseq256128v1 3099.09 3128.93 3129.36 T:acorn128 10124.16 10124.71 10125.72 T:present80n6t4silcv2 10125.17 10125.72 10126.57 T:present80n6silcv1 11652.17 11664.93 11670.26 T:led80n6silcv1 11831.87 11842.63 11849.94 T:led80n6t4silcv2

Cycles/byte for long+long encrypt 25% 50% 75% aead 3.12 3.13 3.14 T:morus1280256v2 3.12 3.13 3.15 T:morus1280256v1 3.12 3.14 3.14 T:morus1280128v2 3.12 3.14 3.15 T:morus1280128v1 3.89 3.91 3.92 T:morus640128v1 3.90 3.91 3.92 T:morus640128v2 6.69 6.77 6.81 T:norx6444v3 6.86 6.91 6.92 T:norx6444v2 6.94 7.04 7.06 T:norx6441v2 7.14 7.15 7.16 T:norx6441v3 7.78 7.79 7.82 T:norx6441v1 7.81 7.82 7.82 T:norx6444v1 7.91 7.93 7.95 T:tiaoxinv1 7.95 7.95 7.97 T:tiaoxinv2 8.05 8.05 8.05 T:norx3241v2 8.05 8.05 8.06 T:norx3241v3 8.44 8.53 8.60 T:seakeyakv2 8.67 8.73 8.80 T:oceankeyakv2 8.77 8.80 8.84 T:lakekeyakv2 9.02 9.05 9.08 T:lakekeyakv1 9.69 9.72 9.74 T:norx3241v1 9.48 9.84 10.13 T:lunarkeyakv2 10.03 10.03 10.03 T:norx6461v2 10.03 10.03 10.03 T:norx6461v3 10.05 10.08 10.10 T:aegis128l 11.17 11.18 11.19 T:norx6461v1 11.95 11.96 11.98 T:norx3261v2 11.96 11.96 11.97 T:norx3261v3 13.12 13.13 13.14 T:ascon96v1 13.18 13.19 13.20 T:ascon128av11 13.18 13.20 13.20 ascon128av12 13.93 13.94 13.95 T:acorn128v3 14.32 14.37 14.40 T:norx3261v1 14.74 14.75 14.77 T:acorn128v2 14.95 14.96 14.98 T:aegis256 15.31 15.34 15.35 T:aegis128 15.41 15.45 15.49 T:riverkeyakv2 19.80 19.81 19.82 ascon128v12 19.99 20.00 20.01 T:ascon128v11 19.99 20.00 20.01 T:ascon128v1 20.38 20.39 20.46 T:ketjemajorv2 22.00 22.12 22.13 T:ketjeminorv2 24.98 25.05 25.11 T:aes128otrcv3 25.06 25.11 25.56 T:aes128otrsv2 25.08 25.39 25.92 T:aes128otrsv1 27.00 27.05 27.08 T:aes128otrsv3 30.40 30.43 30.77 T:aes128otrpv3 30.43 30.44 30.45 T:aes128otrpv1 30.42 30.45 30.47 T:aes128otrpv2 32.07 32.08 32.10 T:aes128n12t8clocv2 32.06 32.08 32.09 T:aes128n8t8clocv2 32.10 32.12 32.34 T:aes128n12clocv1 32.49 32.52 32.55 T:aes128n12t8clocv3 32.52 32.56 32.59 T:aes128n8clocv1 32.53 32.60 32.64 T:aes256otrsv2 32.61 32.68 32.77 T:aes256otrsv1 32.72 32.85 33.35 T:aes256otrcv3 32.83 32.96 33.37 T:seakeyakv1 33.95 34.00 34.32 T:oceankeyakv1 34.03 34.06 34.08 T:deoxysi128v141 34.17 34.19 34.42 aegis128l 34.38 34.58 34.80 T:aes256gcmv1 34.71 35.08 35.13 T:aes256otrsv3 35.03 35.09 35.15 T:aes128n12silcv1 35.46 35.52 35.55 T:aes128n12t8silcv3 37.10 37.13 37.16 T:deoxysi256v141 37.53 37.56 37.60 T:aes128n8t8silcv2 37.55 37.59 37.62 T:aes128n12t8silcv2 37.90 37.93 38.01 T:aes128n8silcv1 38.18 38.19 38.20 T:aes256otrpv3 38.97 38.98 38.98 T:aes256otrpv1 39.01 39.04 39.37 T:aes256otrpv2 39.74 39.77 39.84 T:aesjambuv1 43.73 43.74 43.76 T:proest256otrv1 50.12 50.14 50.15 T:twine80n6t4clocv3 53.24 53.26 53.45 T:twine80n6t4clocv2 56.94 57.05 57.07 T:deoxysii128v141 65.77 65.88 66.57 T:deoxysii256v141 77.10 77.44 78.08 T:riverkeyakv1 94.13 94.14 94.48 T:ketjesrv1 100.50 101.07 101.62 T:ketjesrv2 112.08 112.10 112.19 T:proest128otrv1 113.68 113.85 114.48 T:aezv4 120.97 121.11 121.50 T:aezv5 132.97 133.00 133.28 T:ketjejrv1 190.81 191.27 193.08 T:present80n6t4silcv3 192.02 192.71 193.00 T:deoxysneq128128v1 193.31 193.71 193.93 T:deoxysneq128128v13 204.89 205.89 206.40 T:twine80n6clocv1 229.79 230.03 230.32 T:ketjejrv2 252.21 253.64 254.90 T:aezv1 268.96 269.25 269.57 T:aezv3 289.13 289.41 289.66 T:deoxyseq128128v13 291.63 291.72 292.02 T:deoxyseq128128v1 306.01 306.08 306.46 T:deoxysneq256128v1 307.15 309.78 312.09 T:deoxysneq256128v13 441.79 442.02 442.08 T:led80n6t4silcv3 459.43 460.06 463.45 T:deoxyseq256128v13 458.25 460.70 463.35 T:deoxyseq256128v1 761.99 762.77 763.14 T:aes128gcmv1 3120.19 3123.81 3129.55 T:acorn128 7591.99 7592.40 7592.72 T:present80n6t4silcv2 7593.26 7593.58 7594.02 T:present80n6silcv1 8715.63 8725.82 8731.00 T:led80n6silcv1 8847.55 8859.69 8863.70 T:led80n6t4silcv2 19333.76 19336.73 19344.64 aes256gcmv1

Cycles/byte for long+long decrypt 25% 50% 75% aead 3.16 3.17 3.18 T:morus1280128v2 3.17 3.17 3.18 T:morus1280256v2 3.17 3.17 3.19 T:morus1280256v1 3.18 3.18 3.19 T:morus1280128v1 3.90 3.91 3.91 T:morus640128v2 3.93 3.94 3.95 T:morus640128v1 6.75 6.82 6.84 T:norx6444v2 6.84 6.91 6.93 T:norx6444v3 6.86 6.94 6.95 T:norx6441v2 7.10 7.12 7.13 T:norx6441v3 7.77 7.80 7.95 T:norx6441v1 7.80 7.83 7.85 T:norx6444v1 8.05 8.05 8.05 T:norx3241v2 8.04 8.05 8.05 T:norx3241v3 8.12 8.27 8.47 T:seakeyakv2 8.34 8.38 8.41 T:lakekeyakv2 8.40 8.44 8.46 T:tiaoxinv1 8.41 8.44 8.49 T:tiaoxinv2 8.47 8.54 8.95 T:oceankeyakv2 8.77 8.83 8.87 T:lakekeyakv1 9.50 9.60 9.70 T:lunarkeyakv2 9.72 9.76 9.79 T:norx3241v1 10.02 10.05 10.08 T:norx6461v2 10.03 10.05 10.07 T:norx6461v3 10.14 10.17 10.19 T:aegis128l 11.18 11.31 11.34 T:norx6461v1 11.95 11.96 11.99 T:norx3261v3 11.95 11.97 11.98 T:norx3261v2 13.08 13.09 13.10 T:ascon96v1 13.12 13.13 13.28 T:ascon128av11 13.20 13.21 13.23 ascon128av12 13.87 13.88 13.90 T:acorn128v3 14.35 14.39 14.45 T:norx3261v1 14.49 14.50 14.52 T:acorn128v2 15.02 15.04 15.06 T:aegis256 15.30 15.32 15.33 T:aegis128 15.52 15.57 15.65 T:riverkeyakv2 19.81 19.81 19.84 ascon128v12 19.93 19.94 19.95 T:ascon128v11 19.93 19.94 19.96 T:ascon128v1 21.19 21.19 21.21 T:ketjemajorv2 22.66 22.73 23.16 T:ketjeminorv2 24.90 24.96 25.02 T:aes128otrcv3 25.14? 25.28? 28.05? T:aes128otrsv1 25.27 25.67 26.07 T:aes128otrsv2 27.74 27.77 27.80 T:aes128otrsv3 30.61 30.64 30.67 T:aes128otrpv1 30.68 30.73 30.77 T:aes128otrpv2 30.92 30.99 31.04 T:aes128otrpv3 32.72 32.73 33.32 T:aes256otrcv3 32.67 32.84 32.88 T:aes256otrsv2 32.77 32.86 32.91 T:aes256otrsv1 32.73 32.93 33.29 T:seakeyakv1 33.22 33.23 33.25 T:aes128n12t8clocv2 33.22 33.24 33.25 T:aes128n8t8clocv2 33.64 33.67 33.70 T:aes128n12clocv1 33.68 33.71 33.97 T:aes128n8clocv1 33.84 33.88 33.93 T:oceankeyakv1 33.90 33.94 33.96 T:aes128n12t8clocv3 34.05 34.07 34.31 aegis128l 34.50 34.90 35.38 T:aes256gcmv1 35.09 35.16 35.62 T:aes128n12silcv1 35.17 35.23 35.30 T:aes256otrsv3 35.58 35.60 35.61 T:aes128n12t8silcv3 36.42 36.46 36.48 T:deoxysi128v141 37.71 37.74 37.77 T:aes128n12t8silcv2 37.70 37.76 37.78 T:aes128n8t8silcv2 37.87 37.91 38.01 T:aes128n8silcv1 38.79 38.81 39.21 T:aes256otrpv3 39.32 39.39 39.43 T:aes256otrpv2 39.24 39.47 39.50 T:aes256otrpv1 39.74 39.75 39.84 T:deoxysi256v141 39.87 39.88 39.90 T:aesjambuv1 43.61 43.65 43.68 T:proest256otrv1 50.38 50.39 50.41 T:twine80n6t4clocv3 53.73 53.75 53.76 T:twine80n6t4clocv2 56.88 56.91 56.92 T:deoxysii128v141 66.25 66.40 67.03 T:deoxysii256v141 76.96 77.27 78.18 T:riverkeyakv1 95.03 95.04 96.08 T:ketjesrv2 95.11 95.15 95.59 T:ketjesrv1 111.71 112.37 114.01 T:proest128otrv1 113.45 113.76 115.06 T:aezv4 120.93 120.96 121.36 T:aezv5 134.48 134.50 134.86 T:ketjejrv1 191.51 191.88 193.64 T:present80n6t4silcv3 202.77 205.22 205.38 T:twine80n6clocv1 213.49 213.81 214.84 T:ketjejrv2 220.97 221.76 222.10 T:deoxysneq128128v1 222.04 222.33 222.79 T:deoxysneq128128v13 252.30 253.83 254.77 T:aezv1 268.62 269.26 270.28 T:aezv3 289.14 289.38 289.70 T:deoxyseq128128v13 347.32 347.75 348.26 T:deoxysneq256128v1 347.64 350.79 350.98 T:deoxyseq128128v1 349.33 351.16 354.49 T:deoxysneq256128v13 441.48 441.72 441.97 T:led80n6t4silcv3 459.27 459.97 461.52 T:deoxyseq256128v13 544.52 545.48 545.94 T:deoxyseq256128v1 763.01 763.12 763.37 T:aes128gcmv1 3125.67 3126.74 3128.82 T:acorn128 7592.27 7592.61 7593.24 T:present80n6t4silcv2 7593.31 7593.84 7594.10 T:present80n6silcv1 8724.61 8729.61 8731.80 T:led80n6silcv1 8800.97 8855.28 8862.56 T:led80n6t4silcv2 19333.52 19337.54 19342.80 aes256gcmv1

Cycles/byte for long+long forgery 25% 50% 75% aead 3.18 3.18 3.18 T:morus1280128v2 3.19 3.19 3.19 T:morus1280256v1 3.18 3.19 3.19 T:morus1280256v2 3.19 3.19 3.20 T:morus1280128v1 3.91 3.92 3.92 T:morus640128v2 3.95 3.96 3.96 T:morus640128v1 6.87 6.93 6.96 T:norx6444v2 6.96 7.02 7.03 T:norx6444v3 6.97 7.05 7.06 T:norx6441v2 7.22 7.22 7.23 T:norx6441v3 7.89 7.91 8.05 T:norx6441v1 7.92 7.94 7.94 T:norx6444v1 8.05 8.05 8.05 T:norx3241v2 8.05 8.05 8.05 T:norx3241v3 8.23 8.39 8.51 T:seakeyakv2 8.42 8.42 8.46 T:tiaoxinv1 8.44 8.45 8.50 T:tiaoxinv2 8.44 8.49 8.51 T:lakekeyakv2 8.57 8.60 8.66 T:oceankeyakv2 8.83 8.86 8.92 T:lakekeyakv1 9.68 9.72 9.85 T:lunarkeyakv2 9.76 9.76 9.77 T:norx3241v1 10.15 10.16 10.17 T:norx6461v3 10.16 10.17 10.18 T:norx6461v2 10.25 10.28 10.30 T:aegis128l 11.40 11.42 11.45 T:norx6461v1 11.95 11.96 11.97 T:norx3261v2 11.96 11.96 11.96 T:norx3261v3 13.09 13.10 13.10 T:ascon96v1 13.12 13.13 13.14 T:ascon128av11 13.21 13.21 13.22 ascon128av12 13.88 13.88 13.88 T:acorn128v3 14.40 14.41 14.43 T:norx3261v1 14.50 14.51 14.51 T:acorn128v2 15.13 15.15 15.16 T:aegis256 15.31 15.34 15.34 T:aegis128 15.58 15.69 15.80 T:riverkeyakv2 19.82 19.83 19.86 ascon128v12 19.94 19.94 19.97 T:ascon128v1 19.94 19.95 19.97 T:ascon128v11 21.30 21.31 21.32 T:ketjemajorv2 22.77 22.83 22.90 T:ketjeminorv2 24.88 24.95 25.03 T:aes128otrcv3 25.42 25.97 26.18 T:aes128otrsv2 25.26? 26.02? 28.17? T:aes128otrsv1 27.86 27.88 27.94 T:aes128otrsv3 30.73 30.74 31.14 T:aes128otrpv1 30.83 30.85 30.86 T:aes128otrpv2 31.03 31.08 31.15 T:aes128otrpv3 32.58 32.73 33.35 T:aes256otrcv3 32.91 32.96 33.36 T:aes256otrsv2 32.87 32.99 33.39 T:seakeyakv1 32.93 33.01 33.44 T:aes256otrsv1 33.14 33.23 33.25 T:aes128n12t8clocv2 33.22 33.23 33.36 T:aes128n8t8clocv2 33.63 33.67 33.70 T:aes128n12clocv1 33.67 33.70 33.73 T:aes128n8clocv1 33.89 33.96 34.01 T:aes128n12t8clocv3 33.99 34.03 34.80 T:oceankeyakv1 34.16 34.18 34.42 aegis128l 34.14 34.64 35.19 T:aes256gcmv1 35.05 35.12 35.20 T:aes128n12silcv1 35.33 35.36 35.38 T:aes256otrsv3 35.59 35.60 35.61 T:aes128n12t8silcv3 36.51 36.57 36.59 T:deoxysi128v141 37.70 37.71 37.77 T:aes128n8t8silcv2 37.74 37.76 37.81 T:aes128n12t8silcv2 37.88 37.94 37.97 T:aes128n8silcv1 38.87 38.90 38.98 T:aes256otrpv3 39.45 39.48 39.50 T:aes256otrpv2 39.34 39.56 39.60 T:aes256otrpv1 39.85 39.90 39.97 T:deoxysi256v141 39.88 39.90 39.97 T:aesjambuv1 43.60 43.66 44.03 T:proest256otrv1 50.38 50.39 50.50 T:twine80n6t4clocv3 53.75 53.76 53.99 T:twine80n6t4clocv2 56.99 57.03 57.14 T:deoxysii128v141 66.40 66.48 66.55 T:deoxysii256v141 76.83 77.22 78.28 T:riverkeyakv1 95.24 95.25 95.64 T:ketjesrv1 95.15 95.35 96.80 T:ketjesrv2 111.87 112.50 114.01 T:proest128otrv1 113.41 113.64 114.60 T:aezv4 120.16 120.72 120.85 T:aezv5 134.59 134.60 134.91 T:ketjejrv1 191.51 192.07 193.65 T:present80n6t4silcv3 203.70 205.35 205.48 T:twine80n6clocv1 213.60 213.95 214.94 T:ketjejrv2 220.97 221.57 221.80 T:deoxysneq128128v1 221.96 222.43 222.98 T:deoxysneq128128v13 251.87 252.35 252.69 T:aezv1 268.76 268.92 269.44 T:aezv3 288.79 289.34 289.74 T:deoxyseq128128v13 347.29 347.33 348.03 T:deoxysneq256128v1 347.13 347.63 350.78 T:deoxyseq128128v1 348.52 350.73 354.70 T:deoxysneq256128v13 441.45 441.67 441.87 T:led80n6t4silcv3 459.75 460.18 461.66 T:deoxyseq256128v13 545.01 545.85 545.99 T:deoxyseq256128v1 746.05 746.13 746.41 T:aes128gcmv1 746.43 747.30 755.45 aes256gcmv1 3116.52 3126.27 3130.29 T:acorn128 7592.60 7592.98 7594.01 T:present80n6t4silcv2 7593.42 7593.85 7594.31 T:present80n6silcv1 8723.72 8728.03 8730.43 T:led80n6silcv1 8835.88 8857.64 8860.53 T:led80n6t4silcv2

Cycles/byte for 0+long encrypt 25% 50% 75% aead 3.16 3.18 3.19 T:morus1280256v1 3.17 3.18 3.19 T:morus1280128v1 3.17 3.18 3.20 T:morus1280128v2 3.17 3.19 3.20 T:morus1280256v2 3.62 3.62 3.63 T:morus640128v2 3.61 3.63 3.64 T:morus640128v1 5.79 5.86 6.02 T:oceankeyakv2 5.80 5.89 5.94 T:lunarkeyakv2 6.88 6.90 7.04 T:norx6444v3 6.74 6.90 6.96 T:norx6444v2 6.87 6.98 7.00 T:norx6441v2 7.06 7.08 7.10 T:norx6441v3 7.00 7.12 7.37 T:lakekeyakv2 7.14 7.19 7.32 T:seakeyakv2 7.45 7.48 7.51 T:tiaoxinv2 7.44 7.49 7.52 T:tiaoxinv1 7.70 7.71 7.73 T:norx6441v1 7.72 7.73 7.82 T:norx6444v1 7.97 7.98 8.00 T:norx3241v2 7.98 7.99 8.00 T:norx3241v3 8.08 8.14 8.22 T:lakekeyakv1 9.60 9.63 9.66 T:norx3241v1 9.71 9.74 9.76 T:aegis128l 10.01 10.01 10.01 T:norx6461v3 10.00 10.01 10.01 T:norx6461v2 10.47 10.68 11.29 T:aes256gcmv1 11.10 11.11 11.13 T:norx6461v1 11.90 11.90 11.91 T:norx3261v3 11.88 11.90 11.91 T:norx3261v2 13.04 13.06 13.07 ascon128av12 13.11 13.12 13.17 T:ascon128av11 13.09 13.17 13.18 T:ascon96v1 13.62 13.63 13.63 T:acorn128v3 13.78 13.95 14.06 T:riverkeyakv2 14.25 14.28 14.31 T:norx3261v1 14.43 14.44 14.47 T:aegis256 14.49 14.50 14.50 T:acorn128v2 15.60 15.62 15.65 T:aegis128 17.58 17.77 17.78 T:ketjemajorv2 19.73 19.75 19.76 T:ascon128v1 19.74 19.75 19.76 ascon128v12 19.73 19.75 19.76 T:ascon128v11 20.08 20.20 20.27 T:ketjeminorv2 21.09 21.15 21.84 T:aes128n8clocv1 21.17 21.18 21.20 T:aes128n12t8clocv2 21.18 21.19 21.50 T:aes128n8t8clocv2 21.20 21.25 21.31 T:aes128n12clocv1 21.98 21.99 22.19 T:aes128otrsv1 21.95 22.00 22.09 T:aes128otrsv2 22.00 22.06 22.07 T:aes128otrsv3 22.06 22.11 22.12 T:aes128n12t8clocv3 22.55 22.69 22.80 T:aes128n12silcv1 23.80 23.80 23.81 T:aes128n12t8silcv3 24.83 24.91 25.06 T:aes128otrcv3 25.89 26.00 26.06 T:aes128n8t8silcv2 26.01 26.03 26.08 T:aes128n12t8silcv2 26.17 26.21 26.32 T:aes128n8silcv1 27.78 27.78 27.80 T:aes128otrpv3 29.18 29.22 29.25 aegis128l 29.19 29.22 29.24 T:aes256otrsv2 29.17 29.25 29.91 T:aes256otrsv1 29.19 29.26 29.29 T:aes256otrsv3 30.43 30.44 30.45 T:aes128otrpv1 30.44 30.44 30.45 T:aes128otrpv2 31.83 32.49 32.81 T:seakeyakv1 32.44 32.75 32.76 T:aes256otrcv3 33.40 33.44 33.47 T:oceankeyakv1 33.76 33.81 33.86 T:deoxysi128v141 35.38 35.39 35.44 T:aes256otrpv3 36.88 36.96 37.00 T:deoxysi256v141 37.31 37.37 37.42 T:deoxysii128v141 38.68 38.70 38.71 T:aes256otrpv1 38.65 38.77 39.06 T:aes256otrpv2 39.50 39.53 39.55 T:aesjambuv1 43.09 43.40 44.00 T:deoxysii256v141 44.06 44.07 44.09 T:proest256otrv1 49.85 49.88 49.97 T:twine80n6t4clocv3 52.62 52.66 52.69 T:twine80n6t4clocv2 73.91 74.42 74.72 T:riverkeyakv1 89.70 89.86 90.86 T:ketjesrv2 91.30 91.36 91.44 T:aezv5 95.50 95.53 95.55 T:ketjesrv1 98.52 98.56 98.83 T:aezv4 112.17 112.19 112.42 T:proest128otrv1 122.71 122.97 123.74 T:aezv1 127.98 128.00 128.58 T:ketjejrv1 134.74 134.76 135.28 T:twine80n6clocv1 180.96 181.16 181.49 T:aezv3 190.46 190.62 192.78 T:present80n6t4silcv3 190.13 191.50 191.58 T:deoxyseq128128v13 191.54 191.58 191.72 T:deoxyseq128128v1 192.03 192.13 193.11 T:deoxysneq128128v1 193.16 193.77 194.19 T:deoxysneq128128v13 205.96 206.11 206.99 T:ketjejrv2 305.82 306.65 307.64 T:deoxyseq256128v1 306.31 307.06 308.53 T:deoxysneq256128v1 305.91 307.58 309.06 T:deoxyseq256128v13 307.70 309.95 315.63 T:deoxysneq256128v13 440.64 440.72 441.18 T:led80n6t4silcv3 745.15 746.07 746.37 T:aes128gcmv1 745.36 746.38 756.74 aes256gcmv1 3129.89 3134.82 3136.04 T:acorn128 5060.54 5061.57 5062.30 T:present80n6t4silcv2 5061.54 5062.05 5062.47 T:present80n6silcv1 5808.60 5838.66 5857.62 T:led80n6silcv1 5900.93 5928.95 5938.05 T:led80n6t4silcv2

Cycles/byte for 0+long decrypt 25% 50% 75% aead 3.19 3.20 3.23 T:morus1280256v1 3.20 3.21 3.22 T:morus1280128v1 3.20 3.22 3.23 T:morus1280256v2 3.21 3.22 3.23 T:morus1280128v2 3.62 3.62 3.64 T:morus640128v1 3.62 3.62 3.63 T:morus640128v2 5.85 5.91 5.97 T:lunarkeyakv2 5.77 5.97 6.19 T:oceankeyakv2 6.88 6.89 7.05 T:norx6444v3 6.71 6.96 6.98 T:norx6444v2 6.87 6.98 7.00 T:norx6441v2 7.05 7.07 7.09 T:norx6441v3 6.98 7.11 7.37 T:lakekeyakv2 7.11 7.23 7.32 T:seakeyakv2 7.42 7.46 7.47 T:tiaoxinv1 7.45 7.47 7.52 T:tiaoxinv2 7.71 7.72 7.81 T:norx6441v1 7.72 7.73 7.80 T:norx6444v1 7.97 7.98 8.00 T:norx3241v3 7.97 7.99 8.00 T:norx3241v2 8.14 8.17 8.24 T:lakekeyakv1 9.61 9.64 9.68 T:norx3241v1 9.69 9.72 9.75 T:aegis128l 10.00 10.01 10.02 T:norx6461v2 10.00 10.02 10.02 T:norx6461v3 10.44 10.86 11.28 T:aes256gcmv1 11.10 11.12 11.14 T:norx6461v1 11.90 11.90 11.90 T:norx3261v2 11.90 11.90 11.90 T:norx3261v3 13.06 13.08 13.12 T:ascon128av11 13.08 13.12 13.16 T:ascon96v1 13.10 13.13 13.15 ascon128av12 13.86 14.00 14.05 T:riverkeyakv2 14.25 14.25 14.25 T:acorn128v3 14.28 14.29 14.31 T:norx3261v1 14.39 14.42 14.48 T:aegis256 14.50 14.50 14.50 T:acorn128v2 15.51 15.54 15.55 T:aegis128 17.57 17.58 17.59 T:ketjemajorv2 19.74 19.74 19.75 ascon128v12 19.86 19.87 19.88 T:ascon128v11 19.86 19.87 19.89 T:ascon128v1 20.09 20.20 20.26 T:ketjeminorv2 21.11 21.13 21.19 T:aes128n8clocv1 21.18 21.20 21.21 T:aes128n12t8clocv2 21.20 21.21 21.22 T:aes128n8t8clocv2 21.18 21.21 21.32 T:aes128n12clocv1 21.99 22.00 22.10 T:aes128otrsv1 21.93 22.00 22.04 T:aes128otrsv3 21.98 22.01 22.05 T:aes128otrsv2 22.06 22.07 22.11 T:aes128n12t8clocv3 22.55 22.71 22.79 T:aes128n12silcv1 23.80 23.81 23.82 T:aes128n12t8silcv3 24.87 24.94 25.02 T:aes128otrcv3 26.00 26.02 26.04 T:aes128n12t8silcv2 25.87 26.02 26.04 T:aes128n8t8silcv2 26.18 26.21 26.25 T:aes128n8silcv1 27.71 27.76 27.81 T:aes128otrpv3 29.18 29.23 29.27 aegis128l 29.18 29.24 29.28 T:aes256otrsv2 29.18 29.26 30.07 T:aes256otrsv1 29.20 29.26 29.28 T:aes256otrsv3 30.43 30.44 30.46 T:aes128otrpv1 30.42 30.45 30.47 T:aes128otrpv2 32.20 32.35 32.83 T:seakeyakv1 32.61 32.72 32.74 T:aes256otrcv3 33.38 33.43 33.45 T:oceankeyakv1 33.75 33.83 33.87 T:deoxysi128v141 35.34 35.44 36.43 T:aes256otrpv3 36.94 37.03 37.08 T:deoxysi256v141 37.29 37.33 37.38 T:deoxysii128v141 38.68 38.70 38.72 T:aes256otrpv1 38.66 38.76 38.85 T:aes256otrpv2 39.48 39.50 39.53 T:aesjambuv1 43.30 43.36 43.40 T:deoxysii256v141 44.06 44.08 44.12 T:proest256otrv1 49.86 49.88 49.89 T:twine80n6t4clocv3 52.73 52.76 52.79 T:twine80n6t4clocv2 73.91 74.49 75.25 T:riverkeyakv1 89.76 89.78 90.20 T:ketjesrv2 91.28 91.42 91.60 T:aezv5 95.51 95.55 95.66 T:ketjesrv1 98.50 98.73 98.92 T:aezv4 111.92 112.19 115.73 T:proest128otrv1 122.84 123.12 123.76 T:aezv1 127.96 127.98 127.99 T:ketjejrv1 134.72 134.75 134.99 T:twine80n6clocv1 181.19 181.26 181.50 T:aezv3 190.47 190.62 192.65 T:present80n6t4silcv3 190.19 191.42 191.54 T:deoxyseq128128v13 191.54 191.63 191.74 T:deoxyseq128128v1 191.93 192.52 193.02 T:deoxysneq128128v1 193.11 193.21 193.78 T:deoxysneq128128v13 205.99 206.04 206.73 T:ketjejrv2 305.54 306.82 311.26 T:deoxyseq256128v1 305.96 307.25 308.85 T:deoxyseq256128v13 306.32 307.26 308.19 T:deoxysneq256128v1 308.45 308.82 314.56 T:deoxysneq256128v13 440.61 440.64 441.19 T:led80n6t4silcv3 745.88 746.20 746.49 T:aes128gcmv1 745.45 746.31 756.06 aes256gcmv1 3120.02 3126.10 3138.69 T:acorn128 5060.50 5061.45 5061.93 T:present80n6t4silcv2 5061.56 5062.23 5063.65 T:present80n6silcv1 5847.32 5851.85 5855.10 T:led80n6silcv1 5941.82 5946.13 5947.63 T:led80n6t4silcv2

Cycles/byte for 0+long forgery 25% 50% 75% aead 3.22 3.23 3.23 T:morus1280256v1 3.23 3.23 3.23 T:morus1280128v1 3.23 3.23 3.23 T:morus1280128v2 3.22 3.23 3.24 T:morus1280256v2 3.63 3.64 3.65 T:morus640128v1 3.64 3.64 3.64 T:morus640128v2 5.67 5.84 5.96 T:lunarkeyakv2 5.90 5.98 6.04 T:oceankeyakv2 6.87 6.91 7.03 T:norx6444v3 6.68 6.96 6.97 T:norx6444v2 6.87 6.97 6.99 T:norx6441v2 7.06 7.08 7.09 T:norx6441v3 6.97 7.12 7.38 T:lakekeyakv2 7.12 7.23 7.37 T:seakeyakv2 7.45 7.47 7.49 T:tiaoxinv1 7.46 7.48 7.52 T:tiaoxinv2 7.70 7.72 7.74 T:norx6441v1 7.70 7.72 7.83 T:norx6444v1 7.97 7.99 8.00 T:norx3241v2 7.98 7.99 8.00 T:norx3241v3 8.13 8.16 8.23 T:lakekeyakv1 9.64 9.67 9.68 T:norx3241v1 9.66 9.73 9.78 T:aegis128l 10.00 10.01 10.02 T:norx6461v3 10.00 10.02 10.17 T:norx6461v2 10.04? 10.98? 11.87? T:aes256gcmv1 11.10 11.12 11.17 T:norx6461v1 11.90 11.90 11.90 T:norx3261v2 11.90 11.90 11.90 T:norx3261v3 13.06 13.08 13.12 T:ascon128av11 13.11 13.14 13.18 T:ascon96v1 13.12 13.14 13.15 ascon128av12 13.84 13.97 14.09 T:riverkeyakv2 14.25 14.25 14.25 T:acorn128v3 14.30 14.31 14.33 T:norx3261v1 14.40 14.44 14.47 T:aegis256 14.50 14.50 14.50 T:acorn128v2 15.55 15.57 15.58 T:aegis128 17.57 17.59 17.59 T:ketjemajorv2 19.74 19.75 19.77 ascon128v12 19.87 19.88 19.89 T:ascon128v11 19.87 19.88 19.90 T:ascon128v1 20.18 20.21 20.27 T:ketjeminorv2 21.10 21.13 21.18 T:aes128n8clocv1 21.18 21.20 21.22 T:aes128n12t8clocv2 21.20 21.20 21.22 T:aes128n8t8clocv2 21.19 21.31 21.35 T:aes128n12clocv1 22.00 22.01 22.11 T:aes128otrsv1 21.94 22.01 22.04 T:aes128otrsv3 21.99 22.02 22.07 T:aes128otrsv2 22.06 22.08 22.12 T:aes128n12t8clocv3 22.52 22.79 23.13 T:aes128n12silcv1 23.80 23.81 23.83 T:aes128n12t8silcv3 24.85 24.93 25.01 T:aes128otrcv3 26.00 26.02 26.04 T:aes128n12t8silcv2 25.99 26.03 26.06 T:aes128n8t8silcv2 26.17 26.21 26.25 T:aes128n8silcv1 27.72 27.75 27.82 T:aes128otrpv3 29.19 29.23 29.27 aegis128l 29.22 29.26 29.28 T:aes256otrsv2 29.19 29.26 30.02 T:aes256otrsv1 29.25 29.26 29.30 T:aes256otrsv3 30.43 30.44 30.46 T:aes128otrpv1 30.44 30.45 30.46 T:aes128otrpv2 32.21 32.35 32.83 T:seakeyakv1 32.60 32.61 32.73 T:aes256otrcv3 33.39 33.49 33.54 T:oceankeyakv1 33.77 33.81 33.86 T:deoxysi128v141 35.32 35.43 35.47 T:aes256otrpv3 36.94 37.02 37.06 T:deoxysi256v141 37.31 37.37 37.39 T:deoxysii128v141 38.68 38.70 38.72 T:aes256otrpv1 38.70 38.80 38.83 T:aes256otrpv2 39.51 39.51 39.54 T:aesjambuv1 43.34 43.40 43.47 T:deoxysii256v141 44.05 44.09 44.13 T:proest256otrv1 49.86 49.88 49.90 T:twine80n6t4clocv3 52.76 52.78 52.81 T:twine80n6t4clocv2 73.90 74.42 75.27 T:riverkeyakv1 89.76 89.80 89.89 T:ketjesrv2 91.27 91.35 91.49 T:aezv5 95.51 95.53 95.56 T:ketjesrv1 98.64 98.72 98.89 T:aezv4 111.92 112.25 115.73 T:proest128otrv1 122.81 123.08 123.42 T:aezv1 127.96 127.97 128.01 T:ketjejrv1 134.74 134.75 134.76 T:twine80n6clocv1 181.13 181.27 181.53 T:aezv3 190.48 191.25 192.65 T:present80n6t4silcv3 190.76 191.41 191.49 T:deoxyseq128128v13 191.53 191.60 191.72 T:deoxyseq128128v1 191.88 192.45 193.02 T:deoxysneq128128v1 193.07 193.21 193.83 T:deoxysneq128128v13 205.95 206.01 207.12 T:ketjejrv2 305.29 306.76 308.86 T:deoxyseq256128v13 305.62 307.06 309.17 T:deoxyseq256128v1 306.31 307.11 309.71 T:deoxysneq256128v1 307.73 308.64 313.64 T:deoxysneq256128v13 440.55 440.63 441.09 T:led80n6t4silcv3 745.84 746.14 746.35 T:aes128gcmv1 745.59 747.08 755.93 aes256gcmv1 3118.64 3122.23 3136.76 T:acorn128 5060.57 5061.28 5061.89 T:present80n6t4silcv2 5061.61 5062.03 5063.18 T:present80n6silcv1 5853.54 5857.63 5859.11 T:led80n6silcv1 5940.39 5943.61 5948.06 T:led80n6t4silcv2

Cycles/byte for 1536+1536 encrypt 25% 50% 75% aead 3.80 3.81 3.81 T:morus1280256v1 3.81 3.82 3.83 T:morus1280128v1 3.82 3.83 3.83 T:morus1280256v2 3.85 3.87 3.95 T:morus1280128v2 4.35 4.37 4.37 T:morus640128v1 4.39 4.40 4.41 T:morus640128v2 8.34 8.42 8.44 T:norx6441v2 8.53 8.55 8.56 T:norx6441v3 8.79 8.79 8.81 T:norx3241v2 8.79 8.80 8.80 T:norx3241v3 8.89 8.90 8.90 T:norx6441v1 9.77 9.82 9.85 T:lakekeyakv2 9.91 9.98 10.02 T:norx6444v3 10.03 10.07 10.08 T:norx6444v2 10.28 10.30 10.33 T:norx3241v1 10.88 10.89 10.89 T:tiaoxinv2 10.88 10.89 10.89 T:tiaoxinv1 11.06 11.08 11.12 T:lakekeyakv1 11.25 11.25 11.26 T:norx6444v1 11.84 11.85 11.87 T:aegis128l 11.85 11.87 11.90 T:norx6461v3 11.86 11.89 11.96 T:norx6461v2 11.89 11.93 12.02 T:seakeyakv2 12.69 12.69 12.72 T:norx6461v1 13.00 13.00 13.02 T:norx3261v3 13.00 13.01 13.03 T:norx3261v2 13.44 13.44 13.45 T:ascon96v1 13.50 13.50 13.51 T:ascon128av11 13.51 13.52 13.53 ascon128av12 15.19 15.21 15.24 T:norx3261v1 16.16 16.21 16.25 T:oceankeyakv2 16.29 16.29 16.31 T:acorn128v3 16.33 16.35 16.39 T:riverkeyakv2 16.62 16.64 16.65 T:aegis128 16.77 16.78 16.79 T:aegis256 17.29 17.29 17.31 T:acorn128v2 20.10 20.11 20.12 ascon128v12 20.30 20.31 20.31 T:ascon128v1 20.30 20.31 20.31 T:ascon128v11 24.10 24.11 24.38 T:ketjemajorv2 24.05 24.16 24.26 T:ketjeminorv2 25.48 25.52 25.59 T:lunarkeyakv2 26.57 26.59 26.62 T:aes128otrsv2 26.58 26.60 26.90 T:aes128otrsv1 26.58 26.68 26.72 T:aes128otrcv3 28.48 28.50 28.55 T:aes128otrsv3 31.79 31.80 31.81 T:aes128otrpv3 31.90 31.90 31.92 T:aes128otrpv2 31.91 31.92 31.92 T:aes128otrpv1 32.44 32.45 32.47 T:aes128n12t8clocv2 32.44 32.45 32.46 T:aes128n8t8clocv2 32.60 32.62 32.64 T:aes128n12clocv1 32.89 32.90 32.91 T:aes128n12t8clocv3 33.00 33.02 33.04 T:aes128n8clocv1 34.35 34.39 34.41 T:aes256otrsv2 34.39 34.44 34.50 T:aes256otrsv1 34.62 34.82 34.85 T:aes256otrcv3 35.48 35.49 35.50 T:deoxysi128v141 35.84 35.85 35.93 T:aes128n12silcv1 36.16 36.17 36.18 T:aes128n12t8silcv3 36.87 36.89 36.91 T:aes256otrsv3 38.19 38.21 38.24 T:aes128n8t8silcv2 38.21 38.26 38.29 T:aes128n12t8silcv2 38.72 38.77 38.81 T:aes128n8silcv1 38.76 38.77 38.98 aegis128l 39.87 39.89 39.90 T:aes256otrpv3 39.99 40.01 40.02 T:deoxysi256v141 40.05 40.07 40.44 T:seakeyakv1 40.36 40.38 40.38 T:aesjambuv1 40.80 40.80 40.81 T:aes256otrpv1 40.81 40.84 41.16 T:aes256otrpv2 43.47 43.57 43.62 T:aes256gcmv1 47.72 47.74 47.76 T:proest256otrv1 51.09 51.10 51.11 T:twine80n6t4clocv3 51.93 51.96 52.10 T:oceankeyakv1 54.34 54.34 54.41 T:twine80n6t4clocv2 58.30 58.31 58.38 T:deoxysii128v141 69.77 69.78 70.41 T:deoxysii256v141 80.37 81.18 81.23 T:riverkeyakv1 96.49 96.49 96.58 T:ketjesrv1 103.61 103.61 104.12 T:ketjesrv2 108.79 108.90 109.03 T:aezv4 115.65 115.71 116.25 T:aezv5 116.84 116.86 117.02 T:proest128otrv1 134.69 134.71 135.09 T:ketjejrv1 193.04 193.29 195.02 T:present80n6t4silcv3 193.10 193.45 194.02 T:deoxysneq128128v1 194.79 194.84 195.35 T:deoxysneq128128v13 206.01 206.84 207.08 T:twine80n6clocv1 233.06 233.18 233.37 T:ketjejrv2 238.79 239.28 239.84 T:aezv1 265.42 265.68 266.46 T:aezv3 292.15 292.23 292.70 T:deoxyseq128128v13 293.62 293.67 294.03 T:deoxyseq128128v1 307.67 307.70 308.19 T:deoxysneq256128v1 309.19 311.60 313.41 T:deoxysneq256128v13 445.45 445.72 445.81 T:led80n6t4silcv3 461.72 464.22 465.14 T:deoxyseq256128v1 464.41 465.36 467.15 T:deoxyseq256128v13 766.41 767.04 767.80 T:aes128gcmv1 3516.65 3545.85 3546.64 T:acorn128 7632.05 7632.48 7632.65 T:present80n6t4silcv2 7633.24 7633.55 7633.81 T:present80n6silcv1 8733.17 8738.59 8741.68 T:led80n6silcv1 8870.15 8874.41 8878.71 T:led80n6t4silcv2 19725.04 19728.89 19734.20 aes256gcmv1

Cycles/byte for 1536+1536 decrypt 25% 50% 75% aead 3.85 3.86 3.86 T:morus1280256v1 3.87 3.88 3.88 T:morus1280128v1 3.88 3.88 3.88 T:morus1280256v2 3.89 3.89 3.89 T:morus1280128v2 4.41 4.41 4.42 T:morus640128v2 4.43 4.43 4.44 T:morus640128v1 8.23 8.32 8.33 T:norx6441v2 8.57 8.57 8.60 T:norx6441v3 8.78 8.78 8.78 T:norx3241v2 8.79 8.79 8.79 T:norx3241v3 8.85 8.90 9.01 T:norx6441v1 9.32 9.35 9.38 T:lakekeyakv2 9.90 9.93 9.95 T:norx6444v2 10.08 10.11 10.12 T:norx6444v3 10.34 10.35 10.36 T:norx3241v1 10.78 10.83 10.87 T:lakekeyakv1 11.21 11.24 11.35 T:norx6444v1 11.39 11.40 11.40 T:tiaoxinv1 11.38 11.40 11.42 T:tiaoxinv2 11.64 11.70 11.78 T:seakeyakv2 11.95 11.96 11.97 T:norx6461v3 11.95 11.96 11.96 T:aegis128l 11.95 11.96 12.12 T:norx6461v2 12.72 12.75 12.83 T:norx6461v1 13.00 13.01 13.02 T:norx3261v3 13.01 13.02 13.03 T:norx3261v2 13.41 13.41 13.42 T:ascon96v1 13.44 13.44 13.45 T:ascon128av11 13.52 13.53 13.53 ascon128av12 15.26 15.26 15.28 T:norx3261v1 15.95 15.99 16.06 T:oceankeyakv2 16.26 16.27 16.28 T:acorn128v3 16.44 16.48 16.56 T:riverkeyakv2 16.62 16.63 16.66 T:aegis128 16.86 16.87 16.88 T:aegis256 17.07 17.07 17.08 T:acorn128v2 20.11 20.12 20.12 ascon128v12 20.24 20.24 20.25 T:ascon128v11 20.24 20.25 20.27 T:ascon128v1 24.70 24.75 24.79 T:ketjeminorv2 24.84 24.84 24.84 T:ketjemajorv2 25.16 25.22 25.35 T:lunarkeyakv2 26.53 26.59 26.65 T:aes128otrcv3 26.80 26.82 29.38 T:aes128otrsv1 26.82 26.83 26.85 T:aes128otrsv2 29.23 29.25 29.53 T:aes128otrsv3 32.11 32.12 32.14 T:aes128otrpv1 32.24 32.26 32.28 T:aes128otrpv2 32.39 32.41 32.47 T:aes128otrpv3 33.59 33.60 33.61 T:aes128n8t8clocv2 33.59 33.61 33.77 T:aes128n12t8clocv2 34.12 34.13 34.16 T:aes128n12clocv1 34.15 34.17 34.18 T:aes128n8clocv1 34.28 34.29 34.30 T:aes128n12t8clocv3 34.62 34.66 34.72 T:aes256otrsv1 34.59 34.67 34.67 T:aes256otrsv2 34.75 34.76 34.79 T:aes256otrcv3 35.90 35.90 35.97 T:aes128n12silcv1 36.24 36.25 36.25 T:aes128n12t8silcv3 37.03 37.06 37.07 T:aes256otrsv3 38.17 38.20 38.25 T:deoxysi128v141 38.38 38.41 38.53 T:aes128n8t8silcv2 38.42 38.45 38.48 T:aes128n12t8silcv2 38.69 38.71 38.82 T:aes128n8silcv1 38.65 38.88 39.50 aegis128l 39.95 39.99 40.39 T:seakeyakv1 40.50 40.51 40.52 T:aesjambuv1 40.53 40.54 40.58 T:aes256otrpv3 41.11 41.12 41.33 T:aes256otrpv1 41.21 41.24 41.26 T:aes256otrpv2 43.00 43.02 43.06 T:deoxysi256v141 47.63 47.69 47.72 T:proest256otrv1 47.61 48.15 48.43 T:aes256gcmv1 51.35 51.35 51.36 T:twine80n6t4clocv3 51.90 51.92 51.96 T:oceankeyakv1 54.83 54.85 54.90 T:twine80n6t4clocv2 58.17 58.19 58.21 T:deoxysii128v141 69.64 69.68 69.76 T:deoxysii256v141 80.21 80.73 81.29 T:riverkeyakv1 97.49 97.49 97.51 T:ketjesrv1 98.12 98.14 98.43 T:ketjesrv2 108.63 108.76 109.26 T:aezv4 115.49 115.66 117.31 T:aezv5 116.99 117.12 118.66 T:proest128otrv1 136.16 136.18 136.34 T:ketjejrv1 194.42 195.62 196.04 T:present80n6t4silcv3 204.42 206.15 206.35 T:twine80n6clocv1 216.85 217.29 218.06 T:ketjejrv2 221.94 222.46 222.85 T:deoxysneq128128v1 223.38 223.46 224.06 T:deoxysneq128128v13 239.33 239.71 240.62 T:aezv1 265.12 265.20 266.76 T:aezv3 292.21 292.34 292.79 T:deoxyseq128128v13 348.43 348.64 350.26 T:deoxyseq128128v1 348.93 349.16 349.51 T:deoxysneq256128v1 350.92 352.40 353.15 T:deoxysneq256128v13 445.11 445.36 445.42 T:led80n6t4silcv3 464.45 464.90 470.62 T:deoxyseq256128v13 544.19 547.81 548.45 T:deoxyseq256128v1 767.35 767.45 767.69 T:aes128gcmv1 3518.65 3521.61 3523.96 T:acorn128 7632.10 7632.49 7632.75 T:present80n6t4silcv2 7633.47 7633.60 7634.07 T:present80n6silcv1 8734.62 8736.88 8738.24 T:led80n6silcv1 8817.44 8820.12 8874.28 T:led80n6t4silcv2 19725.22 19729.81 19734.39 aes256gcmv1

Cycles/byte for 1536+1536 forgery 25% 50% 75% aead 3.85 3.85 3.86 T:morus1280256v1 3.86 3.86 3.87 T:morus1280128v1 3.87 3.87 3.88 T:morus1280256v2 3.88 3.88 3.88 T:morus1280128v2 4.41 4.41 4.41 T:morus640128v2 4.42 4.43 4.43 T:morus640128v1 8.35 8.42 8.44 T:norx6441v2 8.69 8.69 8.70 T:norx6441v3 8.78 8.78 8.78 T:norx3241v2 8.79 8.79 8.79 T:norx3241v3 8.98 9.01 9.14 T:norx6441v1 9.42 9.46 9.49 T:lakekeyakv2 9.97 10.03 10.06 T:norx6444v2 10.18 10.23 10.24 T:norx6444v3 10.33 10.33 10.34 T:norx3241v1 10.88 10.93 10.97 T:lakekeyakv1 11.33 11.33 11.35 T:norx6444v1 11.36 11.37 11.39 T:tiaoxinv1 11.36 11.37 11.38 T:tiaoxinv2 11.71 11.78 11.83 T:seakeyakv2 12.06 12.07 12.08 T:aegis128l 12.06 12.07 12.09 T:norx6461v3 12.07 12.08 12.14 T:norx6461v2 12.81 12.86 12.93 T:norx6461v1 12.99 13.00 13.00 T:norx3261v3 12.99 13.00 13.00 T:norx3261v2 13.40 13.41 13.44 T:ascon96v1 13.44 13.44 13.45 T:ascon128av11 13.52 13.52 13.52 ascon128av12 15.24 15.24 15.27 T:norx3261v1 16.03 16.07 16.13 T:oceankeyakv2 16.24 16.24 16.25 T:acorn128v3 16.53 16.56 16.66 T:riverkeyakv2 16.61 16.62 16.65 T:aegis128 17.00 17.00 17.01 T:aegis256 17.06 17.07 17.07 T:acorn128v2 20.11 20.11 20.12 ascon128v12 20.24 20.24 20.25 T:ascon128v1 20.24 20.24 20.25 T:ascon128v11 24.81 24.87 24.91 T:ketjeminorv2 24.96 24.96 24.96 T:ketjemajorv2 25.30 25.34 25.41 T:lunarkeyakv2 26.52 26.55 26.64 T:aes128otrcv3 26.92 26.93 29.50 T:aes128otrsv1 26.93 26.95 26.96 T:aes128otrsv2 29.34 29.36 29.38 T:aes128otrsv3 32.22 32.22 32.23 T:aes128otrpv1 32.35 32.35 32.36 T:aes128otrpv2 32.50 32.58 32.59 T:aes128otrpv3 33.57 33.58 33.60 T:aes128n8t8clocv2 33.58 33.59 33.60 T:aes128n12t8clocv2 34.14 34.15 34.19 T:aes128n8clocv1 34.11 34.15 34.41 T:aes128n12clocv1 34.26 34.28 34.31 T:aes128n12t8clocv3 34.48 34.63 34.65 T:aes256otrcv3 34.71 34.79 34.80 T:aes256otrsv2 34.74 34.80 34.86 T:aes256otrsv1 35.86 35.93 36.31 T:aes128n12silcv1 36.23 36.23 36.24 T:aes128n12t8silcv3 37.15 37.19 37.21 T:aes256otrsv3 38.26 38.32 38.32 T:deoxysi128v141 38.35 38.36 38.42 T:aes128n8t8silcv2 38.38 38.43 38.45 T:aes128n12t8silcv2 38.65 38.67 38.69 T:aes128n8silcv1 38.78 38.80 39.00 aegis128l 40.06 40.10 40.49 T:seakeyakv1 40.50 40.51 40.96 T:aesjambuv1 40.65 40.68 40.70 T:aes256otrpv3 41.20 41.24 41.43 T:aes256otrpv1 41.29 41.35 41.37 T:aes256otrpv2 43.13 43.16 43.20 T:deoxysi256v141 47.62 47.63 47.70 T:proest256otrv1 51.33 51.34 51.35 T:twine80n6t4clocv3 52.00 52.02 52.25 T:oceankeyakv1 54.83 54.83 54.88 T:twine80n6t4clocv2 58.29 58.30 58.33 T:deoxysii128v141 60.48 60.79 61.18 T:aes256gcmv1 69.82 69.85 69.88 T:deoxysii256v141 80.31 80.33 81.39 T:riverkeyakv1 97.61 97.62 97.74 T:ketjesrv1 98.25 98.26 98.71 T:ketjesrv2 108.46 108.63 109.25 T:aezv4 115.35 116.10 116.18 T:aezv5 116.99 116.99 118.66 T:proest128otrv1 136.28 136.29 136.33 T:ketjejrv1 194.09 195.60 195.71 T:present80n6t4silcv3 205.38 206.14 206.47 T:twine80n6clocv1 216.97 217.39 218.18 T:ketjejrv2 221.90 222.43 222.85 T:deoxysneq128128v1 223.54 223.56 224.19 T:deoxysneq128128v13 239.02 239.34 240.25 T:aezv1 264.99 265.36 265.89 T:aezv3 292.34 292.50 293.43 T:deoxyseq128128v13 348.43 348.61 349.04 T:deoxyseq128128v1 348.92 349.18 350.53 T:deoxysneq256128v1 350.49 351.94 353.34 T:deoxysneq256128v13 445.12 445.36 445.49 T:led80n6t4silcv3 464.76 465.87 470.77 T:deoxyseq256128v13 544.10 547.79 548.54 T:deoxyseq256128v1 750.39 750.46 750.91 T:aes128gcmv1 1138.01 1138.52 1146.11 aes256gcmv1 3516.30 3521.40 3523.38 T:acorn128 7632.12 7632.44 7632.79 T:present80n6t4silcv2 7633.87 7634.30 7634.95 T:present80n6silcv1 8734.95 8737.87 8739.51 T:led80n6silcv1 8838.76 8875.55 8877.98 T:led80n6t4silcv2

Cycles/byte for 64+64 encrypt 25% 50% 75% aead 14.65 15.04 15.22 T:morus640128v1 15.34 15.44 15.44 T:morus640128v2 18.91 19.02 19.66 T:morus1280256v1 19.16 19.43 19.78 T:morus1280128v1 19.42 19.73 19.98 T:morus1280256v2 20.08 20.34 20.46 T:morus1280128v2 20.49 20.62 20.83 T:ascon96v1 20.53 20.68 20.88 T:ascon128av11 20.65 20.81 21.16 ascon128av12 22.35 22.61 22.86 T:norx3241v1 23.75 23.80 23.91 T:norx3241v2 23.84 23.91 24.09 T:norx3241v3 26.99 27.03 27.11 T:ascon128v11 26.89 27.05 27.13 ascon128v12 26.99 27.09 27.20 T:ascon128v1 28.19 28.36 28.41 T:norx6441v1 32.48 32.71 33.38 T:norx3261v1 32.91 33.05 33.29 T:norx6441v2 33.49 33.62 33.75 T:norx6441v3 33.93 34.07 34.33 T:norx3261v2 34.02 34.29 34.43 T:norx3261v3 38.69 38.84 38.98 T:norx6461v1 39.74 40.74 41.61 T:riverkeyakv2 40.77 41.17 41.37 T:aes128n8t8clocv2 40.95 41.19 41.66 T:aes128n12t8clocv2 41.49 41.62 42.11 T:aes128n12t8clocv3 42.12 42.45 43.02 T:lakekeyakv1 43.66 43.86 44.27 T:aes128n8clocv1 42.97 43.91 44.88 T:lakekeyakv2 43.77 44.10 44.88 T:aes128n12clocv1 44.20 44.21 44.21 T:norx6461v2 44.31 44.33 45.14 T:norx6461v3 46.52 46.77 47.18 T:aegis128 50.88 51.18 51.47 T:aes128n12t8silcv3 52.38 52.63 53.16 T:aes128n12t8silcv2 52.45 52.66 52.89 T:aegis128l 52.34 52.69 53.21 T:aes128n8t8silcv2 53.11 53.39 54.95 T:aes128n12silcv1 54.19 54.34 54.57 T:aesjambuv1 56.02 56.62 57.16 T:aes128n8silcv1 58.39 58.56 58.70 T:aegis256 60.39 60.60 61.36 T:aes128otrsv2 60.51 60.85 60.99 T:aes128otrsv1 61.56 61.99 62.78 T:aes128otrsv3 62.84 63.00 63.14 T:aes128otrpv3 63.45 63.69 64.20 T:aes128otrcv3 65.07 65.30 65.57 T:aes128otrpv2 65.48 65.59 65.82 T:aes128otrpv1 67.96 68.32 68.52 T:deoxysi128v141 70.30 70.61 70.73 T:acorn128v3 70.52 70.91 71.01 T:ketjeminorv2 73.19 73.30 73.84 T:twine80n6t4clocv3 75.20 75.50 75.68 T:norx6444v2 75.69 75.81 76.18 T:acorn128v2 75.83 76.02 76.38 T:aes256otrsv2 76.02 76.37 77.13 T:aes256otrsv1 76.33 76.53 77.08 T:norx6444v3 77.86 78.00 78.13 T:aes256otrsv3 78.52 78.58 78.93 T:aes256otrpv3 78.37 78.59 78.84 T:tiaoxinv2 78.80 79.06 79.24 T:tiaoxinv1 78.98 79.17 79.44 T:twine80n6t4clocv2 80.86 81.31 81.60 T:aes256otrcv3 82.38 82.73 82.94 T:aes256otrpv2 82.56 82.80 82.95 T:aes256otrpv1 84.16 84.16 84.35 T:norx6444v1 88.15 88.30 88.61 T:deoxysii128v141 105.68 105.95 106.54 T:deoxysi256v141 107.20 107.50 108.01 T:seakeyakv2 107.78 107.80 107.80 T:ketjemajorv2 135.59 137.12 138.04 T:aezv4 139.66 139.75 140.20 T:proest256otrv1 140.68 140.96 142.13 T:riverkeyakv1 143.34 143.87 144.30 aegis128l 149.84 150.34 151.44 T:aezv5 150.36 150.44 150.51 T:ketjesrv1 173.53 173.54 173.85 T:ketjejrv1 174.61 175.87 177.38 T:ketjesrv2 178.91 179.89 180.70 T:oceankeyakv2 217.69 217.94 218.46 T:deoxysneq128128v1 218.72 219.25 220.53 T:deoxysneq128128v13 225.10 225.76 226.38 T:proest128otrv1 227.26 227.57 228.13 T:twine80n6clocv1 240.80 241.31 243.33 T:present80n6t4silcv3 245.44 247.74 251.28 T:aes256gcmv1 248.21 249.05 250.64 T:aezv1 280.26 280.57 281.30 T:deoxysii256v141 298.27 299.02 301.48 T:seakeyakv1 304.78 305.35 305.50 T:ketjejrv2 339.52 339.60 339.88 T:deoxyseq128128v1 345.84 345.98 346.16 T:deoxysneq256128v1 347.34 350.32 350.62 T:deoxysneq256128v13 360.68 360.95 362.39 T:deoxyseq128128v13 363.55 365.51 366.71 T:aezv3 400.03 400.21 402.46 T:lunarkeyakv2 529.10 529.76 529.96 T:led80n6t4silcv3 535.83 536.28 538.31 T:deoxyseq256128v1 562.86 563.34 563.73 T:oceankeyakv1 575.38 575.81 582.52 T:deoxyseq256128v13 865.18 865.60 865.70 T:aes128gcmv1 8541.95 8542.89 8553.20 T:present80n6t4silcv2 8548.02 8549.88 8552.75 T:present80n6silcv1 8737.62 8833.59 9218.16 T:led80n6silcv1 8882.03 8989.38 9365.45 T:led80n6t4silcv2 12450.98 12517.92 12523.70 T:acorn128 28730.05 28734.71 28744.84 aes256gcmv1

Cycles/byte for 64+64 decrypt 25% 50% 75% aead 15.48 15.60 15.86 T:morus640128v1 15.99 15.99 16.16 T:morus640128v2 19.15 19.45 19.77 T:morus1280256v1 19.48 19.75 19.88 T:morus1280128v1 19.92 20.06 20.38 T:morus1280256v2 20.39 20.56 20.69 T:morus1280128v2 20.54 20.78 21.10 ascon128av12 20.60 20.81 21.07 T:ascon96v1 20.72 20.86 21.10 T:ascon128av11 22.33 22.63 23.20 T:norx3241v1 23.27 23.40 23.61 T:norx3241v2 23.55 23.58 23.62 T:norx3241v3 27.01 27.13 27.27 ascon128v12 27.23 27.36 27.60 T:ascon128v1 27.29 27.44 27.71 T:ascon128v11 27.61 27.78 28.12 T:norx6441v1 32.47 32.84 33.36 T:norx3261v1 32.72 32.88 32.90 T:norx6441v2 33.74 33.74 33.87 T:norx3261v3 33.66 33.80 33.96 T:norx3261v2 35.36 35.48 35.56 T:norx6441v3 38.16 38.52 38.75 T:norx6461v1 39.91 40.62 41.57 T:riverkeyakv2 41.71 42.11 42.44 T:lakekeyakv1 42.02 42.16 42.46 T:aes128n8t8clocv2 42.04 42.19 42.53 T:aes128n12t8clocv2 41.70 42.29 43.26 T:lakekeyakv2 42.71 42.99 43.66 T:aes128n12t8clocv3 44.75 44.80 45.21 T:aes128n8clocv1 44.87 45.31 45.98 T:aes128n12clocv1 46.02 46.09 46.17 T:norx6461v2 46.05 46.19 46.77 T:norx6461v3 46.63 46.85 47.02 T:aegis128 50.95 51.09 51.55 T:aes128n12t8silcv3 52.48 52.52 53.11 T:aes128n8t8silcv2 52.56 52.75 53.06 T:aes128n12t8silcv2 52.70 52.98 53.44 T:aegis128l 53.94 54.20 55.03 T:aes128n12silcv1 54.65 54.78 54.97 T:aesjambuv1 55.93 56.25 56.87 T:aes128n8silcv1 58.72 58.94 59.30 T:aegis256 60.80 61.12 61.54 T:aes128otrsv2 61.08 61.87 63.06 T:aes128otrsv1 62.69 62.84 63.12 T:aes128otrsv3 63.16 63.41 63.60 T:aes128otrcv3 64.68 65.01 65.32 T:aes128otrpv3 65.51 65.56 65.85 T:aes128otrpv1 65.80 65.91 66.13 T:aes128otrpv2 70.76 70.88 71.16 T:acorn128v3 71.18 71.21 71.43 T:ketjeminorv2 73.73 73.84 74.16 T:twine80n6t4clocv3 73.91 73.95 74.23 T:norx6444v2 75.91 76.07 76.30 T:acorn128v2 76.70 76.76 76.87 T:norx6444v3 76.59 76.81 77.00 T:aes256otrsv2 76.81 77.20 77.97 T:aes256otrsv1 77.84 78.30 78.77 T:deoxysi128v141 78.62 78.91 79.20 T:aes256otrsv3 79.19 79.33 79.66 T:tiaoxinv2 79.45 79.62 79.89 T:tiaoxinv1 79.43 79.63 79.85 T:twine80n6t4clocv2 80.02 80.16 80.61 T:aes256otrpv3 80.33 80.66 80.80 T:aes256otrcv3 83.05 83.32 83.73 T:aes256otrpv2 83.32 83.54 83.62 T:aes256otrpv1 83.52 83.70 83.97 T:norx6444v1 87.98 88.33 88.69 T:deoxysii128v141 106.16 106.62 108.32 T:seakeyakv2 108.46 108.51 108.65 T:ketjemajorv2 116.96 117.25 120.69 T:deoxysi256v141 133.50 134.37 137.52 T:aezv4 141.04 141.20 142.45 T:proest256otrv1 140.86 141.45 142.26 T:riverkeyakv1 143.13 143.47 143.91 aegis128l 148.37 148.73 149.29 T:aezv5 151.20 151.27 151.50 T:ketjesrv1 169.60 169.75 171.22 T:ketjesrv2 174.67 174.68 174.96 T:ketjejrv1 177.27 178.12 178.74 T:oceankeyakv2 225.91 226.30 228.56 T:proest128otrv1 227.15 227.25 227.62 T:twine80n6clocv1 241.71 242.14 243.94 T:present80n6t4silcv3 246.46 247.05 247.57 T:deoxysneq128128v1 247.21 247.61 247.98 T:deoxysneq128128v13 254.54 255.14 256.06 T:aezv1 281.25 281.66 282.15 T:deoxysii256v141 292.48 292.76 293.52 T:ketjejrv2 298.85 300.97 302.27 T:seakeyakv1 340.22 345.10 349.39 T:aes256gcmv1 360.80 361.20 363.90 T:aezv3 361.50 361.77 363.04 T:deoxyseq128128v13 386.91 387.20 387.48 T:deoxysneq256128v1 388.86 391.04 391.88 T:deoxysneq256128v13 395.50 395.90 396.23 T:deoxyseq128128v1 400.35 401.50 403.71 T:lunarkeyakv2 529.09 529.38 529.46 T:led80n6t4silcv3 562.73 563.00 563.42 T:oceankeyakv1 576.05 578.11 586.66 T:deoxyseq256128v13 617.89 618.28 624.94 T:deoxyseq256128v1 865.80 866.06 866.37 T:aes128gcmv1 8542.51 8543.56 8552.98 T:present80n6t4silcv2 8548.77 8552.75 8553.92 T:present80n6silcv1 8629.93 8638.81 8667.45 T:led80n6silcv1 8805.81 8819.43 8826.60 T:led80n6t4silcv2 12459.07 12491.48 12496.82 T:acorn128 28723.97 28730.70 28735.91 aes256gcmv1

Cycles/byte for 64+64 forgery 25% 50% 75% aead 15.09 15.09 15.25 T:morus640128v1 15.66 15.66 15.66 T:morus640128v2 18.93 18.93 18.93 T:morus1280256v1 19.10 19.10 19.22 T:morus1280128v1 19.45 19.46 19.58 T:morus1280256v2 19.86 19.86 19.86 T:morus1280128v2 20.32 20.52 20.67 ascon128av12 20.42 20.55 20.80 T:ascon96v1 20.54 20.70 20.83 T:ascon128av11 22.09 22.32 22.42 T:norx3241v1 23.29 23.41 23.52 T:norx3241v2 23.39 23.56 23.59 T:norx3241v3 26.70 26.77 26.92 ascon128v12 26.95 27.06 27.21 T:ascon128v1 26.97 27.11 27.28 T:ascon128v11 27.89 27.99 28.23 T:norx6441v1 32.38 32.38 32.63 T:norx3261v1 33.20 33.40 34.34 T:norx6441v2 33.66 33.66 33.80 T:norx3261v2 33.74 33.74 33.74 T:norx3261v3 35.52 35.62 35.85 T:norx6441v3 38.52 38.71 38.84 T:norx6461v1 39.58 39.79 42.67 T:riverkeyakv2 41.58 41.58 41.81 T:aes128n12t8clocv2 41.59 41.70 41.88 T:aes128n8t8clocv2 42.38 42.51 42.86 T:lakekeyakv1 42.38 42.56 43.90 T:aes128n12t8clocv3 41.78 43.59 44.07 T:lakekeyakv2 44.13 44.59 44.88 T:aes128n8clocv1 44.27 44.88 45.61 T:aes128n12clocv1 46.02 46.15 46.20 T:aegis128 46.25 46.25 46.38 T:norx6461v3 46.28 46.32 46.34 T:norx6461v2 50.51 50.68 52.77 T:aes128n12t8silcv3 52.31 52.31 52.52 T:aes128n8t8silcv2 52.31 52.38 52.50 T:aes128n12t8silcv2 52.92 53.04 53.27 T:aegis128l 52.73 53.61 54.48 T:aes128n12silcv1 54.39 54.39 54.45 T:aesjambuv1 55.56 55.67 56.05 T:aes128n8silcv1 59.27 59.48 59.87 T:aegis256 60.87 60.99 61.29 T:aes128otrsv2 60.90 61.11 62.80 T:aes128otrsv1 62.56 62.80 63.16 T:aes128otrsv3 63.02 63.27 63.33 T:aes128otrcv3 64.78 64.84 65.12 T:aes128otrpv3 65.91 66.04 66.05 T:aes128otrpv1 66.27 66.38 67.50 T:aes128otrpv2 70.39 70.39 70.53 T:acorn128v3 71.49 71.52 71.71 T:ketjeminorv2 73.33 73.94 74.38 T:twine80n6t4clocv3 74.26 74.41 74.55 T:norx6444v2 75.55 75.55 75.60 T:acorn128v2 76.81 77.09 77.73 T:aes256otrsv1 76.89 77.16 77.43 T:norx6444v3 76.87 77.19 78.12 T:aes256otrsv2 77.81 78.10 78.68 T:deoxysi128v141 78.02 78.17 78.24 T:tiaoxinv2 78.71 78.79 79.22 T:tiaoxinv1 78.98 79.18 79.25 T:twine80n6t4clocv2 79.05 79.18 79.34 T:aes256otrsv3 80.21 80.41 80.48 T:aes256otrcv3 80.29 80.84 81.04 T:aes256otrpv3 83.39 83.48 83.60 T:aes256otrpv1 83.42 83.80 83.86 T:aes256otrpv2 83.66 83.82 83.88 T:norx6444v1 87.83 87.84 88.02 T:deoxysii128v141 106.09 106.87 107.56 T:seakeyakv2 108.62 108.66 108.80 T:ketjemajorv2 117.36 117.81 118.38 T:deoxysi256v141 132.62 132.94 135.73 T:aezv4 135.98 136.08 136.23 T:proest256otrv1 140.67 140.70 142.20 T:riverkeyakv1 143.59 143.91 144.48 aegis128l 147.62 148.02 148.20 T:aezv5 151.70 151.79 151.99 T:ketjesrv1 170.02 170.16 170.99 T:ketjesrv2 174.95 174.95 175.11 T:ketjejrv1 177.58 177.72 178.34 T:oceankeyakv2 225.87 225.91 228.41 T:proest128otrv1 226.77 226.91 226.95 T:twine80n6clocv1 241.53 241.70 243.92 T:present80n6t4silcv3 246.35 246.51 247.48 T:deoxysneq128128v1 247.66 248.01 248.33 T:deoxysneq128128v13 253.61 253.82 254.43 T:aezv1 281.18 281.58 282.04 T:deoxysii256v141 292.67 293.02 293.66 T:ketjejrv2 298.26 298.75 301.05 T:seakeyakv1 360.04 360.62 362.97 T:aezv3 361.35 361.90 363.27 T:deoxyseq128128v13 386.73 386.82 386.98 T:deoxysneq256128v1 388.52 389.42 392.07 T:deoxysneq256128v13 395.50 395.65 396.10 T:deoxyseq128128v1 401.42 402.00 403.23 T:lunarkeyakv2 528.74 528.80 529.35 T:led80n6t4silcv3 562.91 563.17 564.31 T:oceankeyakv1 575.70 575.89 578.49 T:deoxyseq256128v13 617.88 618.02 624.92 T:deoxyseq256128v1 650.72 655.55 687.59 T:aes256gcmv1 848.60 848.96 850.26 T:aes128gcmv1 8542.33 8543.79 8551.25 T:present80n6t4silcv2 8548.49 8551.18 8554.56 T:present80n6silcv1 8670.41 8715.25 8758.14 T:led80n6silcv1 8847.38 8890.11 8937.32 T:led80n6t4silcv2 10132.88 10140.09 10148.49 aes256gcmv1 12458.97 12492.05 12497.52 T:acorn128
