Implementation comparison: crypto_sign/ronald1536

Operationcrypto_sign
Primitiveronald1536
Description 1536-bit RSA signatures with message recovery
Designers Example for eBATS
Implementations openssl Daniel J. Bernstein (wrapper around OpenSSL)
opensslnew Daniel J. Bernstein (wrapper around OpenSSL)

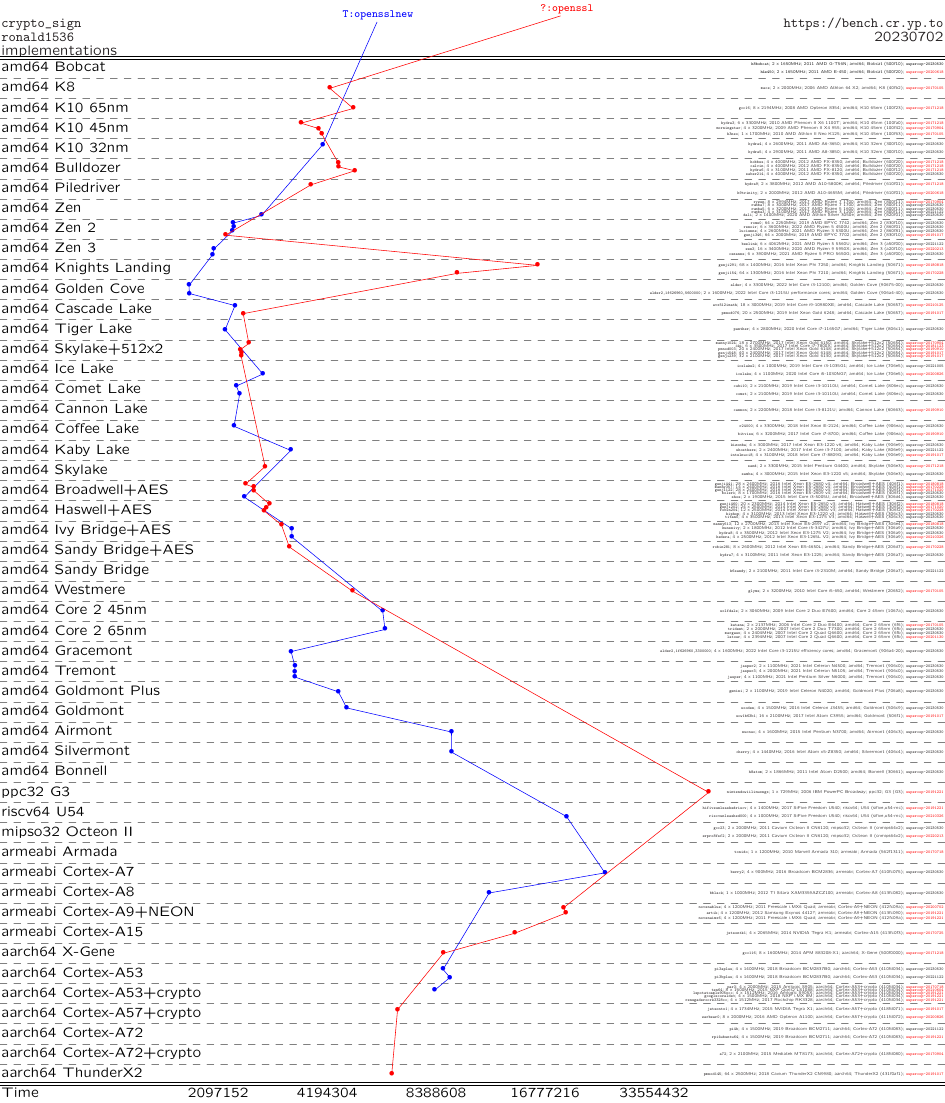

amd64 Bobcat amd64 K10 45nm amd64 K10 32nm amd64 Bulldozer amd64 Zen amd64 Zen 2 amd64 Zen 3 amd64 Zen 4 amd64 Raptor Cove amd64 Golden Cove amd64 Tiger Lake amd64 Ice Lake amd64 Comet Lake amd64 Coffee Lake amd64 Kaby Lake amd64 Skylake amd64 Broadwell+AES amd64 Haswell+AES amd64 Ivy Bridge+AES amd64 Sandy Bridge+AES amd64 Sandy Bridge amd64 Core 2 45nm amd64 Core 2 65nm amd64 Gracemont amd64 Tremont amd64 Goldmont Plus amd64 Goldmont amd64 Airmont amd64 Silvermont amd64 Bonnell riscv64 U54 mipso32 Octeon II armeabi ARM1176 armeabi Cortex-A7 armeabi Cortex-A8 armeabi Cortex-A17 aarch64 Cortex-A53 aarch64 Cortex-A72 https://bench.cr.yp.to 20250523 implementations log2(trycycles) h8bobcat; 2 x 1650MHz; 2011 AMD G-T56N; 500f10 20241022 h3neo; 1 x 1700MHz; 2010 AMD Athlon II Neo K125; 100f63 20250415 hydra4; 4 x 2600MHz; 2011 AMD A6-3650; 300f10 20250415 hydra5; 4 x 2900MHz; 2011 AMD A8-3850; 300f10 20250415 saber214; 4 x 4000MHz; 2012 AMD FX-8350; 600f20 20250415 rumba5; 6 x 3200MHz; 2017 AMD Ryzen 5 1600; 800f11 20241022 rumba7; 8 x 3000MHz; 2017 AMD Ryzen 7 1700; 800f11 20250415 dali; 2 x 1400MHz; 2020 AMD Athlon Silver 3050e; 820f01 20250415 rumba3; 4 x 3100MHz; 2017 AMD Ryzen 3 1200; 800f11 20221122 renoir; 6 x 3600MHz; 2022 AMD Ryzen 5 4500U; 860f01 20250415 lucienne; 4 x 2600MHz; 2021 AMD Ryzen 3 5300U; 860f81 20250415 rome0; 64 x 2250MHz; 2019 AMD EPYC 7742; 830f10 20250415 beelink; 6 x 4062MHz; 2021 AMD Ryzen 5 5560U; a50f00 20221122 cezanne; 6 x 3900MHz; 2021 AMD Ryzen 5 PRO 5650G; a50f00 20250415 zen3; 16 x 3400MHz; 2020 AMD Ryzen 9 5950X; a20f10 20220213 hertz; 8 x 3800MHz; 2023 AMD Ryzen 7 7700; a60f12 20250415 raptor; 6 x 4800MHz; 2023 Intel Core i7-13700H, P cores; b06a2 20231107 alder2,1f626960,5600000; 2 x 1600MHz; 2022 Intel Core i3-1215U, P cores; 906a4-40 20250415 alder; 4 x 3300MHz; 2022 Intel Core i3-12100; 90675-00 20250415 panther; 4 x 2800MHz; 2020 Intel Core i7-1165G7; 806c1 20250415 icelake2; 4 x 1000MHz; 2019 Intel Core i3-1035G1; 706e5 20221005 know; 2 x 2100MHz; 2019 Intel Core i3-10110U; 806ec 20250415 comet; 2 x 2100MHz; 2019 Intel Core i3-10110U; 806ec 20241022 cubi10; 2 x 2100MHz; 2019 Intel Core i3-10110U; 806ec 20250415 r24000; 4 x 3300MHz; 2018 Intel Xeon E-2124; 906ea 20250415 like; 2 x 3000MHz; 2018 Intel Core i3-8109U; 806ea 20250415 kizomba; 4 x 3000MHz; 2017 Intel Xeon E3-1220 v6; 906e9 20250415 whosthere; 2 x 2400MHz; 2017 Intel Core i3-7100; 806e9 20221122 samba; 4 x 3000MHz; 2015 Intel Xeon E3-1220 v5; 506e3 20250415 bolero; 8 x 1700MHz; 2016 Intel Xeon E5-2609 v4; 406f1 20250415 shoe; 2 x 1900MHz; 2015 Intel Core i3-5005U; 306d4 20250415 prodesk; 4 x 2000MHz; 2013 Intel Core i7-4765T; 306c3 20241022 speed2supercop; 4 x 3400MHz; 2013 Intel Core i7-4770; 306c3 20250415 hiphop; 4 x 3100MHz; 2013 Intel Xeon E3-1220 v3; 306c3 20231107 titan0; 4 x 3500MHz; 2013 Intel Xeon E3-1275 V3; 306c3 20250415 hunsnivy; 2 x 1800MHz; 2012 Intel Core i5-3427U; 306a9 20250415 hydra8; 4 x 3500MHz; 2012 Intel Xeon E3-1275 V2; 306a9 20250415 hydra7; 4 x 3100MHz; 2011 Intel Xeon E3-1225; 206a7 20250415 h6sandy; 2 x 2100MHz; 2011 Intel Core i3-2310M; 206a7 20241022 wolfdale; 2 x 3060MHz; 2009 Intel Core 2 Duo E7600; 1067a 20250415 trident; 2 x 2000MHz; 2007 Intel Core 2 Duo T7300; 6fb 20250307 margaux; 4 x 2404MHz; 2007 Intel Core 2 Quad Q6600; 6fb 20250415 alder2,1f626960,3300000; 4 x 1600MHz; 2022 Intel Core i3-1215U, E cores; 906a4-20 20250415 jasper2; 2 x 1100MHz; 2021 Intel Celeron N4500; 906c0 20250415 jasper; 4 x 1100MHz; 2021 Intel Pentium Silver N6000; 906c0 20250415 jasper3; 4 x 2000MHz; 2021 Intel Celeron N5105; 906c0 20250415 gemini; 2 x 1100MHz; 2019 Intel Celeron N4020; 706a8 20250415 wooden; 4 x 1500MHz; 2016 Intel Celeron J3455; 506c9 20250415 nucnuc; 4 x 1600MHz; 2015 Intel Pentium N3700; 406c3 20241022 cherry; 4 x 1440MHz; 2016 Intel Atom x5-Z8350; 406c4 20250415 h8atom; 2 x 1866MHz; 2011 Intel Atom D2500; 30661 20250415 h2atom; 1 x 1000MHz; 2010 Intel Atom N455; 106ca 20241022 riscvunleashed000; 4 x 1000MHz; 2017 SiFive Freedom U540; sifive,u54-mc 20240107 gcc23; 2 x 2000MHz; 2011 Cavium Octeon II CN6120; cnmips64v2 20230530 erpro8fsf2; 2 x 2000MHz; 2011 Cavium Octeon II CN6120; cnmips64v2 20220213 berry0; 1 x 1000MHz; 2011 Broadcom BCM2835; 410fb767 20240909 berry2; 4 x 900MHz; 2016 Broadcom BCM2836; 410fc075 20240909 bblack; 1 x 1000MHz; 2012 TI Sitara XAM3359AZCZ100; 413fc082 20241022 tinker; 4 x 1800MHz; 2014 Rockchip RK3288; 410fc0d1 20241022 pi3bplus; 4 x 1400MHz; 2018 Broadcom BCM2837B0; 410fd034 20241022 pi3aplus; 4 x 1400MHz; 2018 Broadcom BCM2837B0; 410fd034 20250415 pi4b; 4 x 1500MHz; 2019 Broadcom BCM2711; 410fd083 20241022 21 22 23 24 T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew T:opensslnew crypto_sign ronald1536

Details (compiler options, compilation failures, error messages, etc.)

amd64; K10 45nm (100f63); 2010 AMD Athlon II Neo K125; 1 x 1700MHz; h3neo, supercop-20250415: 18x compiler output
amd64; K10 32nm (300f10); 2011 AMD A6-3650; 4 x 2600MHz; hydra4, supercop-20250415: 18x compiler output
amd64; K10 32nm (300f10); 2011 AMD A8-3850; 4 x 2900MHz; hydra5, supercop-20250415: 18x compiler output
amd64; Bulldozer (600f20); 2012 AMD FX-8350; 4 x 4000MHz; saber214, supercop-20250415: 18x compiler output
amd64; Zen (800f11); 2017 AMD Ryzen 7 1700; 8 x 3000MHz; rumba7, supercop-20250415: 18x compiler output
amd64; Zen (820f01); 2020 AMD Athlon Silver 3050e; 2 x 1400MHz; dali, supercop-20250415: 18x compiler output
amd64; Zen 2 (860f01); 2022 AMD Ryzen 5 4500U; 6 x 3600MHz; renoir, supercop-20250415: 18x compiler output
amd64; Zen 2 (860f81); 2021 AMD Ryzen 3 5300U; 4 x 2600MHz; lucienne, supercop-20250415: 18x compiler output
amd64; Zen 2 (830f10); 2019 AMD EPYC 7742; 64 x 2250MHz; rome0, supercop-20250415: 18x compiler output
amd64; Zen 3 (a50f00); 2021 AMD Ryzen 5 PRO 5650G; 6 x 3900MHz; cezanne, supercop-20250415: 18x compiler output
amd64; Zen 3 (a20f10); 2020 AMD Ryzen 9 5950X; 16 x 3400MHz; zen3, supercop-20220213
amd64; Zen 4 (a60f12); 2023 AMD Ryzen 7 7700; 8 x 3800MHz; hertz, supercop-20250415: 12x compiler output
amd64; Golden Cove (906a4-40); 2022 Intel Core i3-1215U, P cores; 2 x 1600MHz; alder2,1f626960,5600000, supercop-20250415: 18x compiler output
amd64; Golden Cove (90675-00); 2022 Intel Core i3-12100; 4 x 3300MHz; alder, supercop-20250415: 18x compiler output
amd64; Tiger Lake (806c1); 2020 Intel Core i7-1165G7; 4 x 2800MHz; panther, supercop-20250415: 18x compiler output
amd64; Comet Lake (806ec); 2019 Intel Core i3-10110U; 2 x 2100MHz; know, supercop-20250415: 18x compiler output
amd64; Comet Lake (806ec); 2019 Intel Core i3-10110U; 2 x 2100MHz; cubi10, supercop-20250415: 18x compiler output
amd64; Coffee Lake (906ea); 2018 Intel Xeon E-2124; 4 x 3300MHz; r24000, supercop-20250415: 18x compiler output
amd64; Coffee Lake (806ea); 2018 Intel Core i3-8109U; 2 x 3000MHz; like, supercop-20250415: 18x compiler output
amd64; Kaby Lake (906e9); 2017 Intel Xeon E3-1220 v6; 4 x 3000MHz; kizomba, supercop-20250415: 18x compiler output
amd64; Kaby Lake (806e9); 2017 Intel Core i3-7100; 2 x 2400MHz; whosthere, supercop-20221122
amd64; Skylake (506e3); 2015 Intel Xeon E3-1220 v5; 4 x 3000MHz; samba, supercop-20250415: 18x compiler output
amd64; Broadwell+AES (406f1); 2016 Intel Xeon E5-2609 v4; 8 x 1700MHz; bolero, supercop-20250415: 18x compiler output
amd64; Broadwell+AES (306d4); 2015 Intel Core i3-5005U; 2 x 1900MHz; shoe, supercop-20250415: 18x compiler output
amd64; Haswell+AES (306c3); 2013 Intel Core i7-4770; 4 x 3400MHz; speed2supercop, supercop-20250415: 18x compiler output
amd64; Haswell+AES (306c3); 2013 Intel Xeon E3-1275 V3; 4 x 3500MHz; titan0, supercop-20250415: 18x compiler output
amd64; Ivy Bridge+AES (306a9); 2012 Intel Core i5-3427U; 2 x 1800MHz; hunsnivy, supercop-20250415: 18x compiler output
amd64; Ivy Bridge+AES (306a9); 2012 Intel Xeon E3-1275 V2; 4 x 3500MHz; hydra8, supercop-20250415: 18x compiler output
amd64; Sandy Bridge+AES (206a7); 2011 Intel Xeon E3-1225; 4 x 3100MHz; hydra7, supercop-20250415: 18x compiler output
amd64; Sandy Bridge+AES (206d7); 2012 Intel Xeon E5-2660; 8 x 2200MHz; unstable; gcc123, supercop-20220213
amd64; Core 2 45nm (1067a); 2009 Intel Core 2 Duo E7600; 2 x 3060MHz; wolfdale, supercop-20250415: 18x compiler output
amd64; Core 2 65nm (6fb); 2007 Intel Core 2 Duo T7300; 2 x 2000MHz; trident, supercop-20250307: 18x compiler output
amd64; Core 2 65nm (6fb); 2007 Intel Core 2 Quad Q6600; 4 x 2404MHz; margaux, supercop-20250415: 18x compiler output
amd64; Gracemont (906a4-20); 2022 Intel Core i3-1215U, E cores; 4 x 1600MHz; alder2,1f626960,3300000, supercop-20250415: 18x compiler output
amd64; Tremont (906c0); 2021 Intel Celeron N4500; 2 x 1100MHz; jasper2, supercop-20250415: 18x compiler output
amd64; Tremont (906c0); 2021 Intel Pentium Silver N6000; 4 x 1100MHz; jasper, supercop-20250415: 18x compiler output
amd64; Tremont (906c0); 2021 Intel Celeron N5105; 4 x 2000MHz; jasper3, supercop-20250415: 18x compiler output
amd64; Goldmont Plus (706a8); 2019 Intel Celeron N4020; 2 x 1100MHz; gemini, supercop-20250415: 18x compiler output
amd64; Goldmont (506c9); 2016 Intel Celeron J3455; 4 x 1500MHz; wooden, supercop-20250415: 18x compiler output
amd64; Airmont (406c3); 2015 Intel Pentium N3700; 4 x 1600MHz; nucnuc, supercop-20241022: 18x compiler output
amd64; Silvermont (406c4); 2016 Intel Atom x5-Z8350; 4 x 1440MHz; cherry, supercop-20250415: 18x compiler output
amd64; Bonnell (30661); 2011 Intel Atom D2500; 2 x 1866MHz; h8atom, supercop-20250415: 18x compiler output
armeabi; ARM1176 (410fb767); 2011 Broadcom BCM2835; 1 x 1000MHz; berry0, supercop-20240909: 13x compiler output, 5x namespace violation
armeabi; Cortex-A7 (410fc075); 2016 Broadcom BCM2836; 4 x 900MHz; berry2, supercop-20240909: 8x compiler output
armeabi; Cortex-A8 (413fc082); 2012 TI Sitara XAM3359AZCZ100; 1 x 1000MHz; bblack, supercop-20241022: 13x compiler output, 5x namespace violation
armeabi; Cortex-A9+NEON (412fc09a); 2011 Freescale i.MX6 Quad; 4 x 1200MHz; unstable; novena, supercop-20220506
aarch64; Skylark (503f0002); 2018 Ampere eMAG 8180; 32 x 3300MHz; unstable; gcc185, supercop-20240107
aarch64; Cortex-A53 (410fd034); 2018 Broadcom BCM2837B0; 4 x 1400MHz; pi3bplus, supercop-20241022: 8x compiler output
aarch64; Cortex-A53 (410fd034); 2018 Broadcom BCM2837B0; 4 x 1400MHz; pi3aplus, supercop-20250415: 8x compiler output
